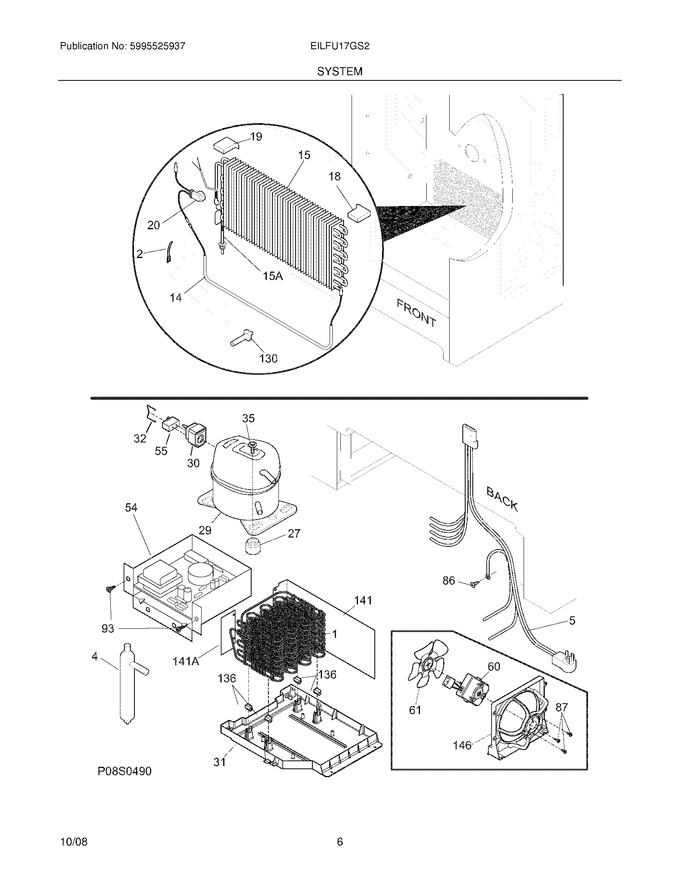

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7297152201 | Condenser |
|
- | |||||
| 2 | 75308000110 | Strap-evap/heater,aluminum ,(2) |
|
- | |||||
| 4 | 7216987500 | Drier-filter |
|
- | |||||
| 14 | 7297216100 | Heater-defrost |
|
- | |||||
| 18 | 7297078700 | Insulator-evap,styrofoam |
|
- | |||||
| 19 | 7297078800 | Insulator-evap,styrofoam |
|
- | |||||
| 20 | 7216872200 | Thermostat,defrost |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 7216954212 | Controller,compressor |
|
- | |||||
| 31 | 7297165800 | Pan-drain |
|
- | |||||
| 32 | 7216649200 | Clip,controller |
|
- | |||||
| 35 | 7297177200 | Bolt,compressor |
|
- | |||||
| 61 | 7241639501 | Blade-condenser Fan |
|
- | |||||
| 86 | 7216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
- | |||||
| 87 | 5304463290 | Screw,hi-lo Blunt ,no.8-18x1/2 |
|
- | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 130 | 7297244700 | Support,evaporator Mtg |
|
- | |||||
| 136 | 7240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
- | |||||
| 141 | 7297164200 | Divider,air Flow |
|
- | |||||
| 146 | 7297164000 | Shroud-fan Orfice |
|
- | |||||
| F141 | 7297194700 | Divider,small ,air Flow |
|
- | |||||
| F146 | 7216337701 | Screw,hwh ,10-24 X 0.500 ,swage |
|
- | |||||
| F15 | 7216997300 | Evaporator |
|
- | |||||
| F15A | 297238700 | Heat Exchanger |
|
$ 95.81 | |||||
| F29 | 7297237400 | Compressor,w/o Electricals |
|
- | |||||
| F5 | 7297173600 | Harness-main |
|
- | |||||
| F54 | 216979700 | Electronics,high Voltage (Replaces: 7216979700) |
|
$ 359.30 | |||||
| F55 | 7218909912 | Capacitor,run ,220 Vac ,12 Microfarad |
|
- | |||||
| F60 | 297279500 | Motor-condenser Fan (Replaces: 7241584301) |
|
Immediately | $ 141.66 | ||||
| FNI | 7297169901 | Cord-power,flat |
|
- | |||||
| NI | 7240555002 | Screw-no.8-32 X 3/8 |
|
- | |||||
| NI | 7297014500 | Plug-suction Line |
|
- | |||||
| NI | 7216502500 | Sleeve,suction Line |
|
- | |||||
| NI | 7297048400 | Clip |
|
- | |||||
| NI | 7297102800 | Spacer-tube |
|
- | |||||
| NI | 297018400 | Thermistor (Replaces: 7297018400) |
|
Immediately | $ 79.52 |
