Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

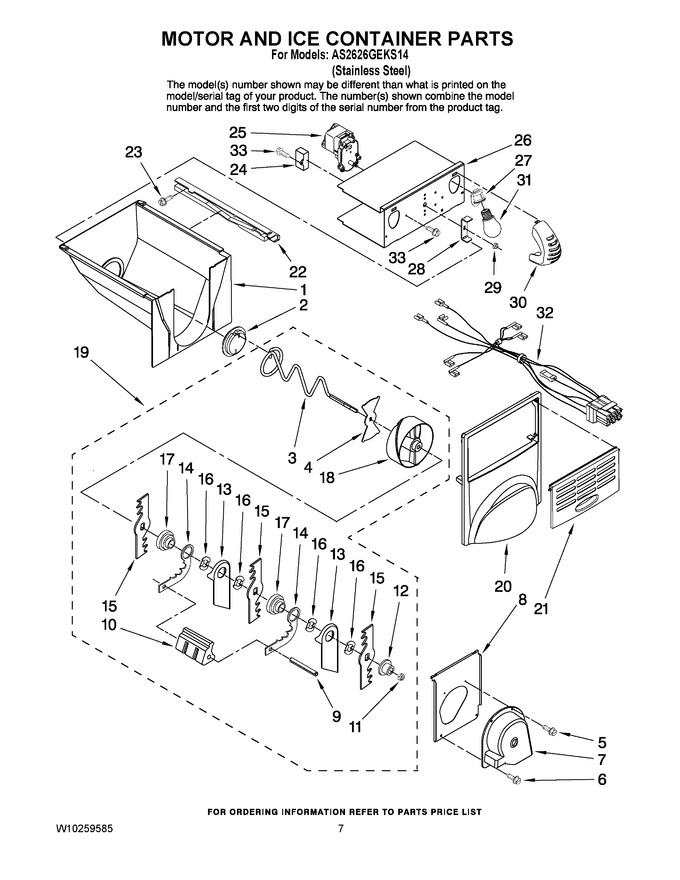

1	WP67005959		Bucket, Ice Crusher   (Replaces: 67005959)				$ 215.60
2	WPD7749401		Cap, Helix End   (Replaces: D7749401)				$ 24.87
3	10114401		Agitator, Ice				$ 107.74
4	10113801		Bar, Crusher				$ 4.96
5	67006508		Screw (2)		Appelez-nous	-
6	67006425		Screw (2)			Immediately	$ 6.26
7	67002271		Cover, Blade				$ 43.83
8	10115001		Front, Ice Crusher				$ 25.55
9	M1200108		Pin, Roll		Appelez-nous	-
10	10114101		Anchor, Blade		Appelez-nous	-
11	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 6.91
12	10113901		Spacer, Cover		Appelez-nous	-
13	10275202SP		Damper, Ice (2)		Appelez-nous	-
14	10114601		Blade, Static		Appelez-nous	-
15	10114501		Blade, Rotating (3)		Appelez-nous	-
16	10275101		Washer, Waved (4)		Appelez-nous	-
17	10114301		Washer Stepped		Appelez-nous	-
18	67002052		Wheel, Crusher				$ 24.40
19	WP12740302		Agitator Assembly   (Replaces: 12740302)				$ 453.92
20	67004255		Cover, Ice Bucket		Appelez-nous	-
21	67004256		Door, Ice Bucket		Appelez-nous	-
22	67005375		Glide, Container (left)				$ 268.13
22	67004323		Glide, Container (right)		Appelez-nous	-
23	67006529		Screw (7)				$ 11.55
24	C8931609		Capacitor		Appelez-nous	-
25	10525206SP		Motor, Auger		Appelez-nous	-
26	12561721		Cover, Auger Motor		Appelez-nous	-
27	W11447232		Socket, Light (2)   (Replaces: 67005886)			Immediately	$ 11.89
28	10114901		Driver				$ 1.61
29	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 6.91
30	67004433		Shield, Light (2)		Appelez-nous	-
31	WP67002552		Bulb, Light (2)   (Replaces: 67002552)			Immediately	$ 10.58
32	12972304SP		Harness, Auger Motor		Appelez-nous	-
33	67006530		Screw		Appelez-nous	-
