SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

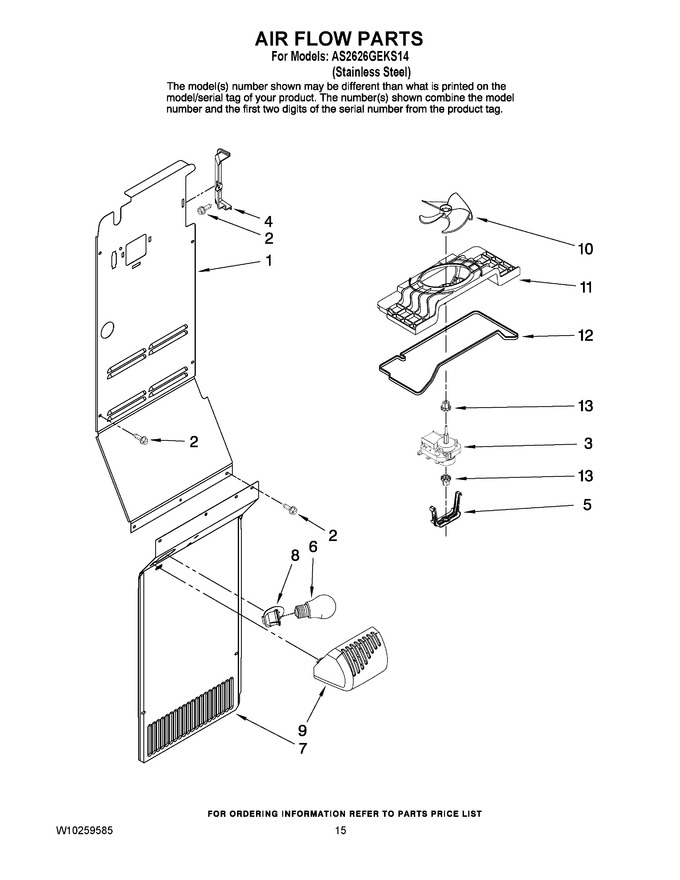

09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12403328		Back, Inner Frz.		Appelez-nous	-
2	67006425		Screw (11)			Immediately	$ 6.26
3	WP67005023		Motor, Evap Fan   (Replaces: 67005023)				$ 281.12
4	12583101		Cover, Supply Air		Appelez-nous	-
5	WP67005633		Clip, Motor   (Replaces: 67005633)				$ 6.89
6	WP67002552		Bulb, Light   (Replaces: 67002552)			Immediately	$ 10.58
7	12403405		Cover, Evaporator		Appelez-nous	-
8	W11447232		Socket, Light   (Replaces: W10134763)			Immediately	$ 11.89
9	67004135		Shield, Light		Appelez-nous	-
10	WP2169142		Blade, Evap. Fan   (Replaces: 2169142)			Immediately	$ 39.07
11	67004253		Shroud, Evap Fan		Appelez-nous	-
12	67001508		Gasket		Appelez-nous	-
13	WP67002780		Grommet, Motor (2)   (Replaces: 67002780)				$ 7.03

    View Diagram in Separate Window       Print Part List
