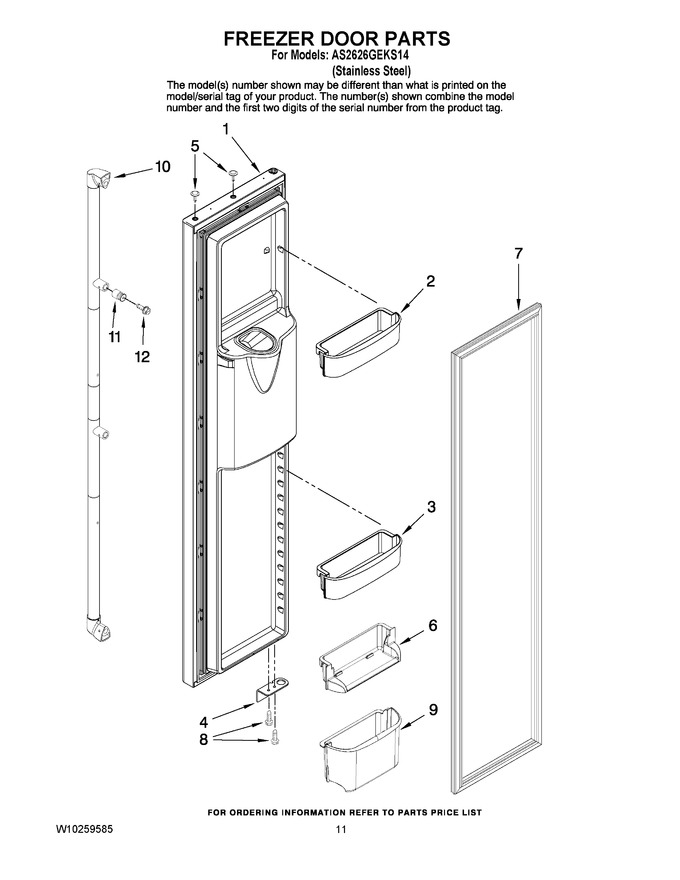

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13091923SQ		Door, Freezer (stainless)		Appelez-nous	-
2	67004772		Bucket, Upper		Appelez-nous	-
3	12557501		Bucket, Lower (1)				$ 15.88
4	67007020		Stop, Door (black)		Appelez-nous	-
5	M0311604		Plug, Button (black)		Appelez-nous	-
6	67004291		Frame, Tilt Bucket		Appelez-nous	-
7	W10133491		Gasket, Door (black)				$ 308.48
8	R9800670		Screw   (Replaces: M0223230)				$ 8.44
9	67004290		Bucket, Tilt		Appelez-nous	-
10	12850907		Handle, Stainless				$ 119.22
11	67006109		Mount, Handle		Appelez-nous	-
12	WPW10133608		Screw, Handle   (Replaces: W10133608)				$ 7.47
