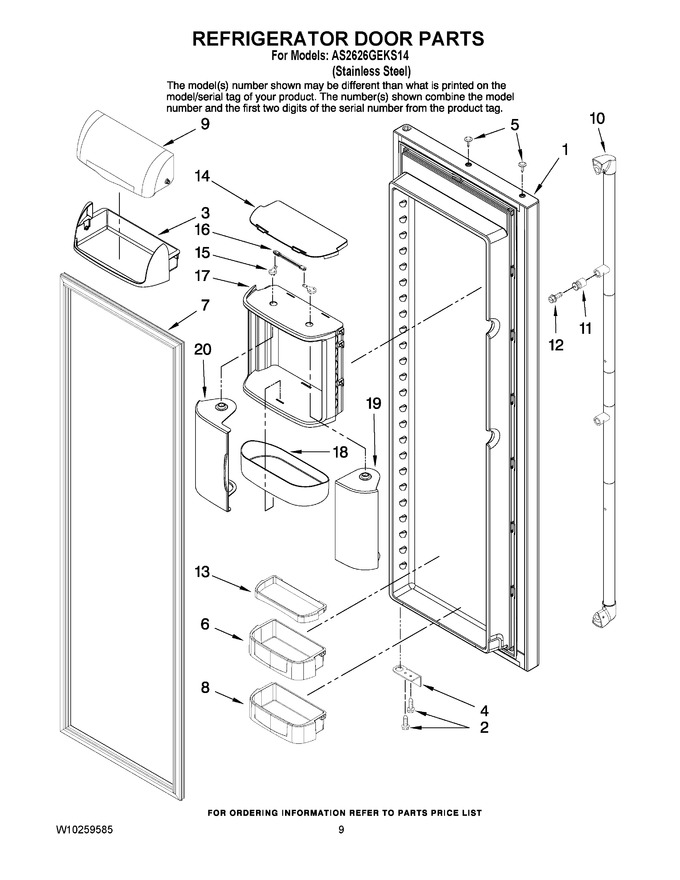

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12818250SQ		Door, Refrigerator (stainless)		Appelez-nous	-
2	R9800670		Screw (2)   (Replaces: M0223230)				$ 8.44
3	67002304		Tray, Dairy		Appelez-nous	-
4	67007017		Stop, Door (black)		Appelez-nous	-
5	M0311604		Plug, Button (2) (black)		Appelez-nous	-
6	67004208		Bucket, Gallon		Appelez-nous	-
7	W10840101		Gasket, Door (black)   (Replaces: W10133482)				$ 280.50
8	67004205		Bucket, Tilt Out		Appelez-nous	-
9	67002957		Door, Dairy		Appelez-nous	-
10	WP12850908		Handle, Stainless   (Replaces: 12850908)				$ 257.68
11	67006109		Mount, Handle		Appelez-nous	-
12	WPW10133608		Screw, Handle   (Replaces: W10133608)				$ 7.47
13	67004458		Retainer, Bottle		Appelez-nous	-
14	67002291		Cover, Chiller		Appelez-nous	-
15	67002293		Linkage, Chiller				$ 11.76
16	67002292		Linkage, Center		Appelez-nous	-
17	67002409		Frame, Chiller (mini)		Appelez-nous	-
17	67002294		Frame, Chiller (large)		Appelez-nous	-
18	67002296		Tray, Chiller				$ 26.66
19	67002297		Door Chiller (rt) (large)		Appelez-nous	-
19	67002411		Door Chiller (rt) (mini)		Appelez-nous	-
20	67003137		Door Chiller (lt) (mini)		Appelez-nous	-
20	67003136		Door Chiller (lt) (large)		Appelez-nous	-
