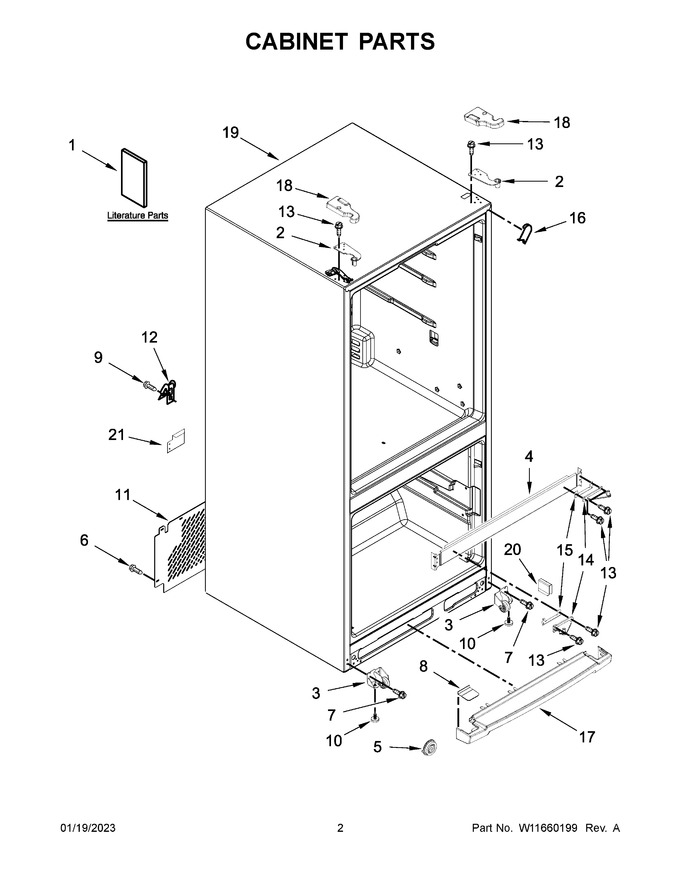

02 - Cabinet Parts
03 - Liner Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11534624 | Tech Sheet |
|
- | |||||
| 2 | W10546298 | Hinge, Top (left Hand) |
|
$ 60.13 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 4 | NP | Accessory Parts, Xhp1000xw White 10" Pedestal |
|
- | |||||
| 5 | W10331226 | Drum, Toe Grille |
|
$ 40.64 | |||||
| 6 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.01 | ||||
| 7 | W11544561 | Screw (Replaces: 2152958) |
|
$ 12.65 | |||||
| 8 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 73.22 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.07 | ||||
| 11 | W11700600 | Cover, Unit (Replaces: W11407731) |
|
Immediately | $ 53.84 | ||||
| 12 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 18.96 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | W10770878 | Hinge, Center (left Hand) |
|
Immediately | $ 70.54 | ||||
| 15 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 21.72 | ||||
| 16 | W11219639 | Corner Filler (white) (Replaces: W11189128) |
|
$ 10.18 | |||||
| 17 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 138.42 | |||||
| 18 | W10465765 | Cover, Hinge (left Hand (white)) |
|
$ 17.63 | |||||
| 19 | NP | Accessory Parts, Xhp1000xw White 10" Pedestal |
|
- | |||||
| 20 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 9.88 | |||||
| 21 | W11528668 | Access Cover, Valve (Replaces: W11458717) |
|
- | |||||
| 14A | W11417064 | Hinge, Center (right Hand) (Replaces: W10770877) |
|
Immediately | $ 54.66 | ||||
| 16A | W11219642 | Filler, Corner (grey) (Replaces: W11189126) |
|
Immediately | $ 11.02 | ||||
| 17A | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 92.99 | ||||
| 18A | W10465764 | Cover, Hinge (right Hand (white)) |
|
$ 18.44 | |||||
| 18B | W10465768 | Cover, Hinge (left Hand (grey)) |
|
$ 17.60 | |||||
| 18C | W10465767 | Cover, Hinge (right Hand (grey)) |
|
Immediately | $ 18.40 | ||||
| 1A | W11512269 | Use And Care Guide |
|
- | |||||
| 1B | W11112393 | Energy Guide |
|
- | |||||
| 2A | W11573371 | Hinge, Top (right Hand) (Replaces: W10546299) |
|
Immediately | $ 21.32 | ||||
| 3A | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 86.27 | ||||
| 8A | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 73.29 |
