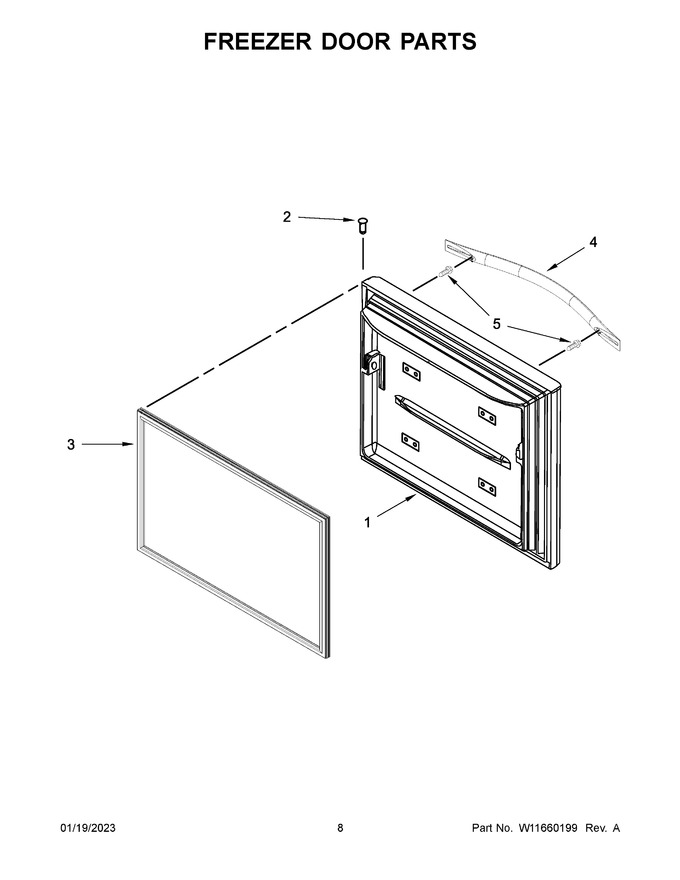

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10353182 | Freezer Door (includes Illus. 2 & 3) (white) (Replaces: W10353182) |
|
$ 522.47 | |||||
| 2 | W11544568 | Thimble, Top (upper) (Replaces: W10366270) |
|
Immediately | $ 11.96 | ||||
| 3 | W10460611 | Gasket (beige) (Replaces: W11464962) |
|
Immediately | $ 260.73 | ||||
| 4 | W11125499 | Handle Assembly (white) |
|
$ 150.21 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 10.67 | ||||
| 1A | LW10858419 | Door, Freezer (includes Illustration 3) (stainless) (Replaces: W10858419) |
|
$ 720.24 | |||||
| 3A | W10836785 | Gasket, Door (grey) (Replaces: W11464960) |
|
$ 250.46 | |||||
| 4A | W11199711 | Handle Assembly (stainless) (Replaces: W11125495) |
|
Immediately | $ 163.23 |
