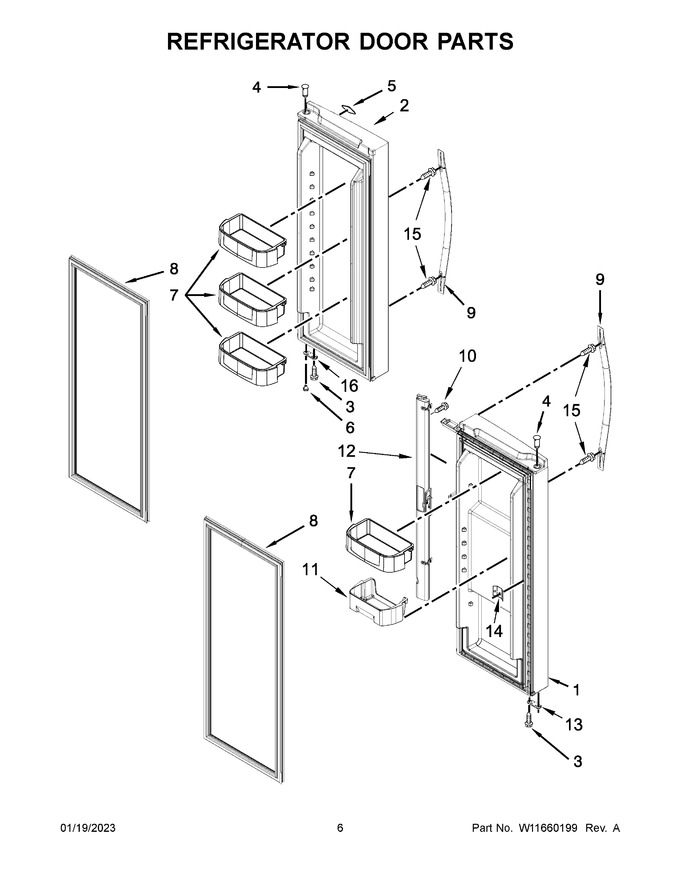

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10721544		Door, Left (includes Part #8) (white)   (Replaces: W10721544)				$ 875.90
2	LW10721540		Door Right (includes #8) (white)   (Replaces: W10721540)				$ 871.74
3	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
4	W11544568		Thimble, Top (upper)   (Replaces: W10366270)			Immediately	$ 11.96
5	W11178521		Badge (badge)   (Replaces: W10884775)			Immediately	$ 56.82
6	WPW10470155		Closure, Door   (Replaces: W10470155)			Immediately	$ 6.47
7	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 64.96
8	W10460612		Gasket (beige)   (Replaces: W10353189)			Immediately	$ 209.42
9	W11127179		Handle, Door (white)   (Replaces: W11101973)			Immediately	$ 163.23
10	W10854958		Screw   (Replaces: 12990302)				$ 6.69
11	WPW10326335		Bin, Shallow   (Replaces: W10326335)			Immediately	$ 52.61
12	WPW10624451		Flipper Mullion Assembly (white)   (Replaces: W10624451)			Immediately	$ 116.04
13	W11745278		Bracket, Door Stop (left Hand)   (Replaces: 2189202)			Immediately	$ 12.03
14	WP939101		Screw Anchor   (Replaces: 939101)				$ 6.75
15	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 10.67
16	WPW10397055		Bracket, Door Stop (right Hand)   (Replaces: W10397055)			Immediately	$ 31.66
12A	WPW10624450		Assembly, Mullion (grey)   (Replaces: W10624450)			Immediately	$ 201.45
1A	LW10858415		Door, Left (includes Part #8) (stainless)   (Replaces: W10858415)				$ 784.91
2A	LW10858417		Door, Refrigerator (includes Illustration 8) Right Hand (stainless)   (Replaces: W10858417)				$ 720.24
8A	WPW10460580		Gasket, Door (grey)   (Replaces: W10413468)			Immediately	$ 199.36
9A	W11123099		Handle Assembly (stainless)   (Replaces: W11101971)			Immediately	$ 140.41
