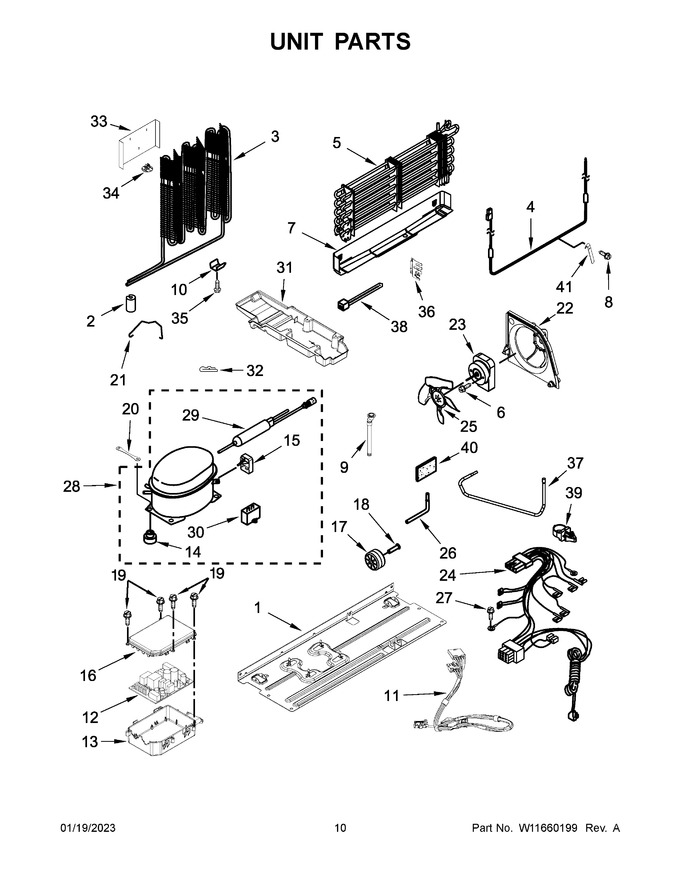

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10300116 | Baseplate |
|
$ 140.83 | |||||
| 2 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 6.93 | |||||
| 3 | WPW10342567 | Condenser (also Order The Following Lokring Parts) (Replaces: W10342567) |
|
Immediately | $ 238.46 | ||||
| 4 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 80.79 | ||||
| 5 | W11611030 | Assembly, Evaporator (also Order The Following Lokring Parts) (Replaces: W11393935) |
|
Immediately | $ 189.21 | ||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | W11562216 | Heat Shield (Replaces: W11377819) |
|
$ 39.90 | |||||
| 8 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 9 | W11284510 | Tube, Drain (Replaces: W11115756) |
|
$ 60.45 | |||||
| 10 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 16.61 | |||||
| 11 | WPW10424230 | Assembly, Low Voltage Wire (Replaces: W10424230) |
|
Immediately | $ 105.97 | ||||
| 12 | W11035836 | Control, Electronic (Replaces: W10892333) |
|
Immediately | $ 235.01 | ||||
| 13 | 2323186 | Box, Control |
|
$ 92.12 | |||||
| 14 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 7.29 | |||||
| 15 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 34.05 | ||||
| 16 | W10313215 | Cover, Electronic Control |
|
$ 66.85 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 20 | W10236396 | Strap, Compressor |
|
Immediately | $ 17.84 | ||||
| 21 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 22 | W11605794 | Bracket, Condenser Fan (Replaces: W11509373) |
|
Immediately | $ 70.73 | ||||
| 23 | WP2188874 | Motor, Condenser (Replaces: W11546725) |
|
Immediately | $ 102.56 | ||||
| 24 | W11432778 | Assembly, Unit Wire Harness |
|
Immediately | $ 73.79 | ||||
| 25 | W11193484 | Blade, Fan (Replaces: W10817071) |
|
Immediately | $ 86.99 | ||||
| 26 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 26.11 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 28 | W11580057 | Compressor (also Order The Following Lokring Parts) (Replaces: W11369198) |
|
Immediately | $ 342.99 | ||||
| 29 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 30 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 31 | W10890667 | Tray, Drain (Replaces: W10802027) |
|
$ 130.24 | |||||
| 32 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 10.37 | ||||
| 33 | W10349514 | Cover, Condenser Bottom |
|
$ 70.63 | |||||
| 34 | W10815861 | Clip, Bottom Cover |
|
$ 13.55 | |||||
| 35 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.30 | |||||
| 36 | W11466555 | Bracket, Evaporator |
|
$ 29.53 | |||||
| 37 | W11741026 | Tube, Suction (Replaces: W11518248) |
|
$ 51.71 | |||||
| 38 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 39 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 40 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 41 | W11611126 | Heat Probe (Replaces: W11558549) |
|
$ 19.85 | |||||
| 28A | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 22.19 | ||||
| 28B | W11578570 | 7/4.5 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 55.11 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 22.19 | ||||
| 29A | W11504445 | 5/4 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 24.79 | ||||
| 29B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 37.63 | ||||
| 3A | W11578570 | 7/4.5 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 55.11 | ||||
| 3B | W11506624 | 4 Nk Ms 00 (suction Line To Condenser) |
|
Immediately | $ 17.95 | ||||
| 5A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 39.87 | ||||
| 5B | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 22.19 | ||||
| NI | NP | Accessory Parts, Xhp1000xw White 10" Pedestal |
|
- |
