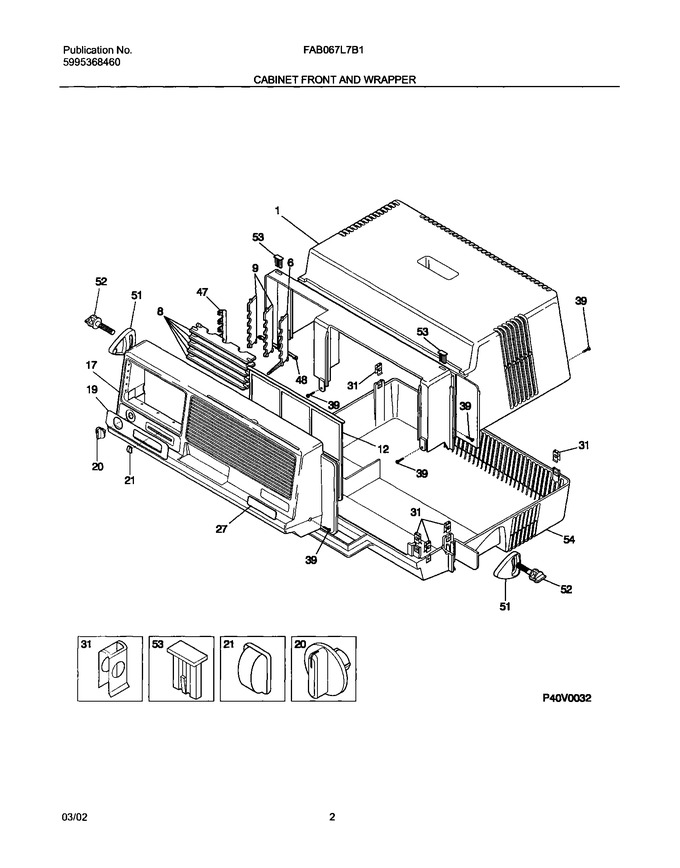

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303307802		Casing,wrapper ,upper ,low Profile		Appelez-nous	-
6	5304414092		Louver,vertical ,w/handle		Appelez-nous	-
8	5304414093		Louver,horizontal		Appelez-nous	-
9	5304414091		Louver,vertical		Appelez-nous	-
12	5304415820		Filter		Appelez-nous	-
17	5304414126		Frame,cabinet Front		Appelez-nous	-
17	5304415822		Front,complete Assy ,6,8,9,27,47,48		Appelez-nous	-
19	5304415821		Dial Plate,insert		Appelez-nous	-
20	309306811		Knob,rotary ,fan Control				$ 45.73
21	5304415819		Knob,sliding ,thermo Control		Appelez-nous	-
27	5304415818		Nameplate		Appelez-nous	-
31	5303286163		Clip, U-type, No. 8		Appelez-nous	-
39	134178901		Screw,truss Head ,8-18 X 0.625 ,front ,(2),square Drive   (Replaces: 5303293767)				$ 14.89
47	5303285477		Link,louver ,horizontal		Appelez-nous	-
48	5303285476		Link-louver Vertical		Appelez-nous	-
51	5303322433		Knob,leveling Device		Appelez-nous	-
52	5303322432		Screw,leveling Device		Appelez-nous	-
53	5304414088		Button Lock		Appelez-nous	-
54	5304427239		Casing,wrapper ,lower ,low Profile		Appelez-nous	-
NI	309367450		Energy Guide,fab067l7b1		Appelez-nous	-
