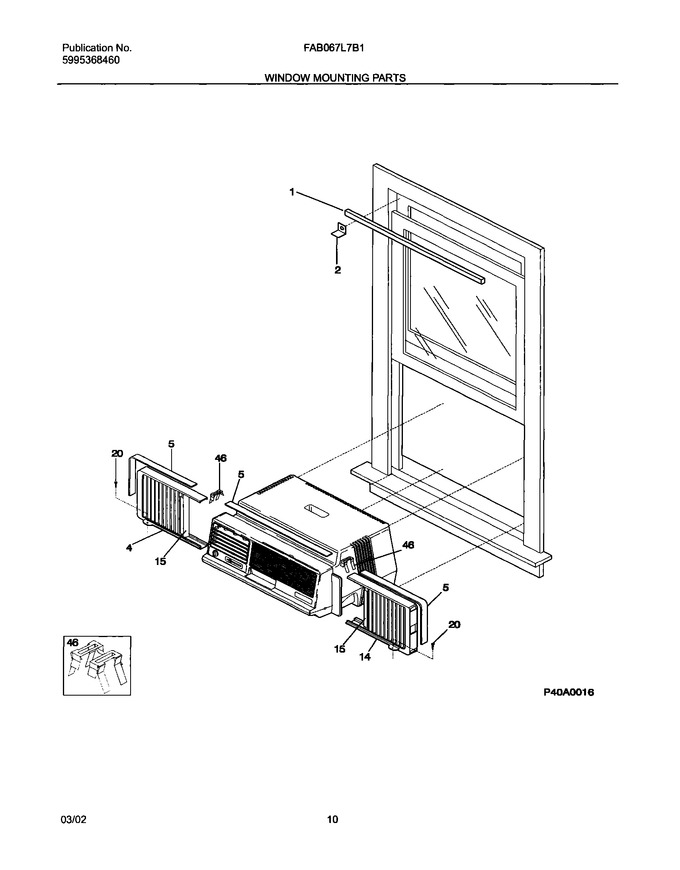

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal,window Stuffer		Appelez-nous	-
2	5303211056		Bracket-sash Lock		Appelez-nous	-
4	5304414125		Extension,cabinet Frame ,lh ,w/closure Panel		Appelez-nous	-
5	5303285464		Seal, Frame		Appelez-nous	-
14	5304414124		Extension,cabinet Frame ,rh ,w/closure Panel		Appelez-nous	-
15	5304415086		Panel,accordian ,frame Extension		Appelez-nous	-
20	5304411997		Screw,8-18 X 0.750				$ 2.37
46	5303285468		Clip,closure/casing		Appelez-nous	-
