View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Cabinet Front And Wrapper
05 - Controls
07 - Air Handling Parts

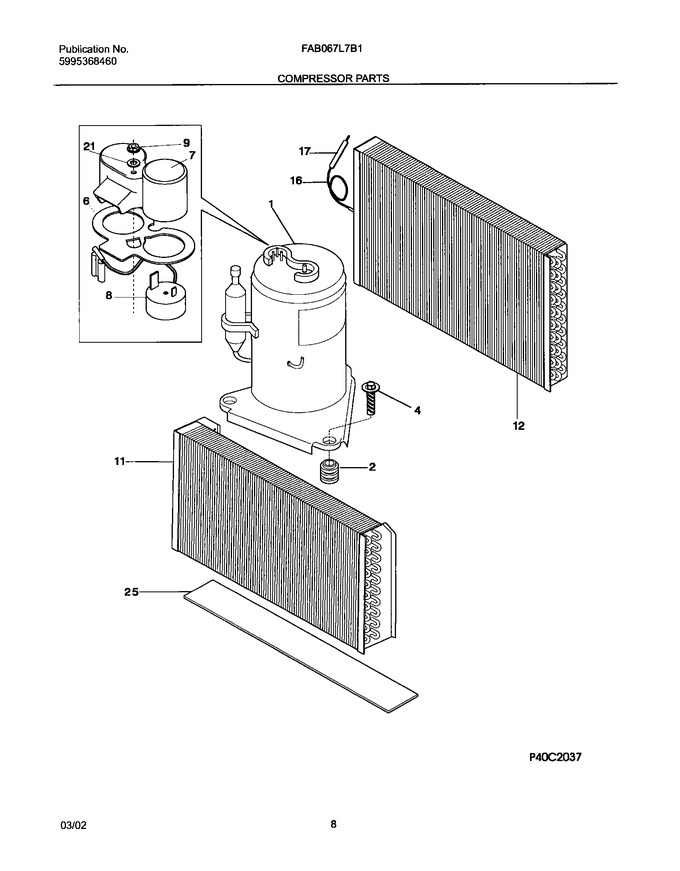

09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 4 | 309101405 | Bolt,compressor Mtg ,(3) ,w/sems Washer |
|
- | |||||
| 6 | 5303291330 | Gasket,terminal Cover |
|
- | |||||
| 7 | 5304416126 | Cover,elec Terminal ,compressor |
|
- | |||||
| 9 | 5303294292 | Nut-terminal Cover |
|
- | |||||
| 21 | 5303293809 | Washer,terminal Cover |
|
- | |||||
| 25 | 5303286385 | Insulation,evaporator ,bottom |
|
- | |||||
| F1 | 5304419800 | Compressor |
|
- | |||||
| F11 | 309647301 | Evaporator |
|
- | |||||
| F12 | 309602701 | Condenser |
|
- | |||||
| F16 | 5308017120 | Capillary Tube,45 Inch Long ,cut To Length |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| F8 | 5304417320 | Overload Protector |
|
- |
