01 - Cover
03 - Cabinet Front And Wrapper

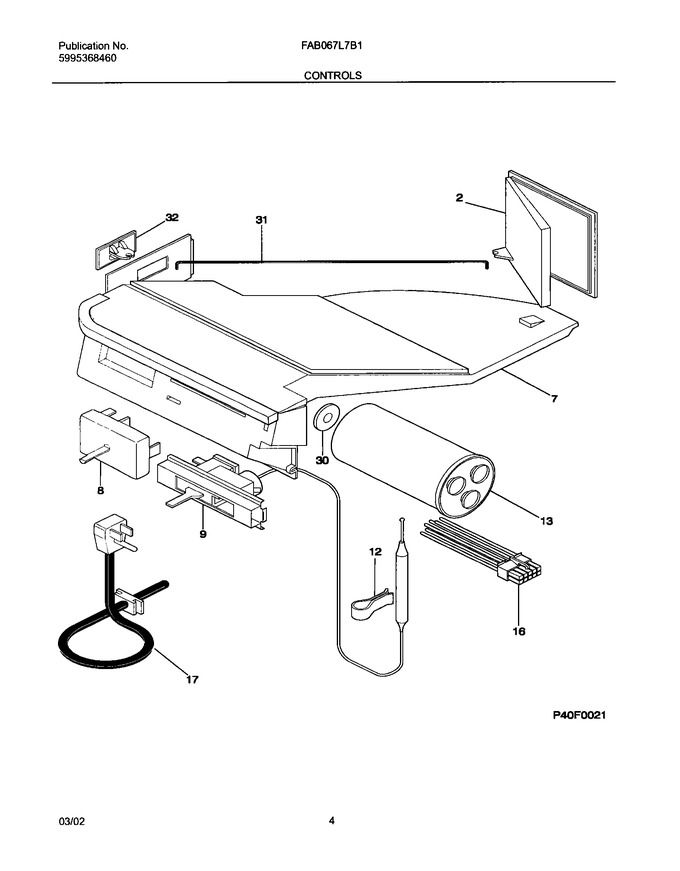

05 - Controls
07 - Air Handling Parts
09 - Compressor Parts
11 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303285450 | Door,fresh Air Vent |
|
- | |||||
| 7 | 5303285458 | Panel,control Mtg |
|
- | |||||
| 12 | 5303303127 | Clip,temp Sensor Mtg |
|
- | |||||
| 30 | 5303270092 | Nut,locking ,capacitor |
|
- | |||||
| 31 | 5303285451 | Rod,door Opener ,vent |
|
- | |||||
| 32 | 5303285452 | Knob,vent Actuator |
|
- | |||||
| F13 | 5303295749 | Capacitor, 370 V, 10 + 35 Mfd |
|
- | |||||
| F16 | 5303285462 | Wiring Harness,control |
|
- | |||||
| F16 | 5304421071 | Wiring Harness,compr/motor |
|
- | |||||
| F17 | 5303285461 | Cord-electric Power |
|
- | |||||
| F8 | 5303318634 | Switch,fan Control ,rotary Selector |
|
- | |||||
| F9 | 5304409259 | Control,temp Selector ,sliding |
|
- |
