SELECT A DIAGRAM
New Model Search:

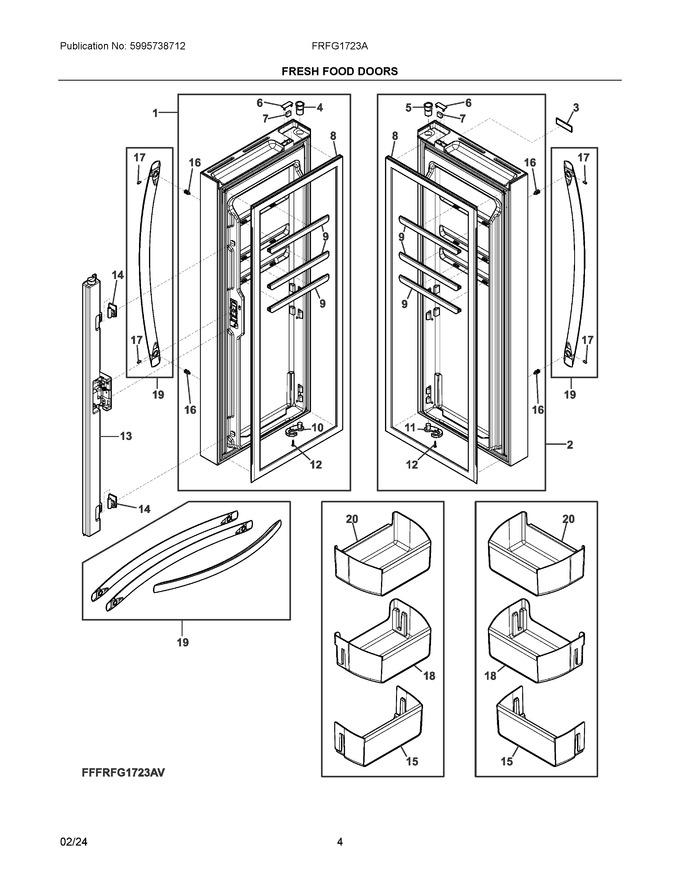

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529289 | Door Assembly, Complete, Stainless, Lh Fresh Food |
|
$ 321.94 | |||||
| 2 | 5304529288 | Door Assembly, Complete, Stainless, Rh Fresh Food |
|
$ 316.64 | |||||
| 3 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 4 | 5304529298 | Bearing, Upper, Lh Door |
|
- | |||||
| 5 | 5304529296 | Bearing, Upper, Rh Door |
|
$ 9.14 | |||||
| 6 | 5304526830 | Cover, Sensor Magnet |
|
- | |||||
| 7 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 18.95 | ||||
| 8 | 811988531 | Gasket, Door, Magnetic |
|
$ 191.86 | |||||
| 9 | 811986812 | Rail, Support, Door Bin |
|
$ 15.17 | |||||
| 10 | 140010465163 | Bearing, Door, Lh Lower, Auto Closer (Replaces: 5304529299) |
|
Immediately | $ 5.11 | ||||
| 11 | 140010465148 | Bearing, Door, Rh Lower, Auto Closer (Replaces: 5304529297) |
|
$ 6.00 | |||||
| 12 | 808337901 | Screw, Pf Ab Pfz Pf, 3.5x1.27x19 |
|
$ 3.03 | |||||
| 13 | 5304529180 | Mullion Assembly, Flip, Gray, W/heater |
|
Immediately | $ 130.39 | ||||
| 14 | 5304519080 | Hinge, Flip Mullion |
|
Immediately | $ 11.42 | ||||
| 15 | 5304529198 | Bin, Door, Bottle, Lower |
|
$ 75.57 | |||||
| 16 | 5304519063 | Screw, Handle Mounting |
|
Immediately | $ 11.48 | ||||
| 17 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 18 | 5304529199 | Bin, Door, Middle |
|
$ 98.23 | |||||
| 19 | 5304529485 | Handle Set, 3 Handles, Stainless, W/set Screws |
|
Immediately | $ 266.04 | ||||
| 20 | 5304529197 | Bin, Door, Top |
|
Immediately | $ 111.43 | ||||
| NIA | 5304519084 | Screw, Flange Pnhd Phl, 8g X 1/2 |
|
- |
