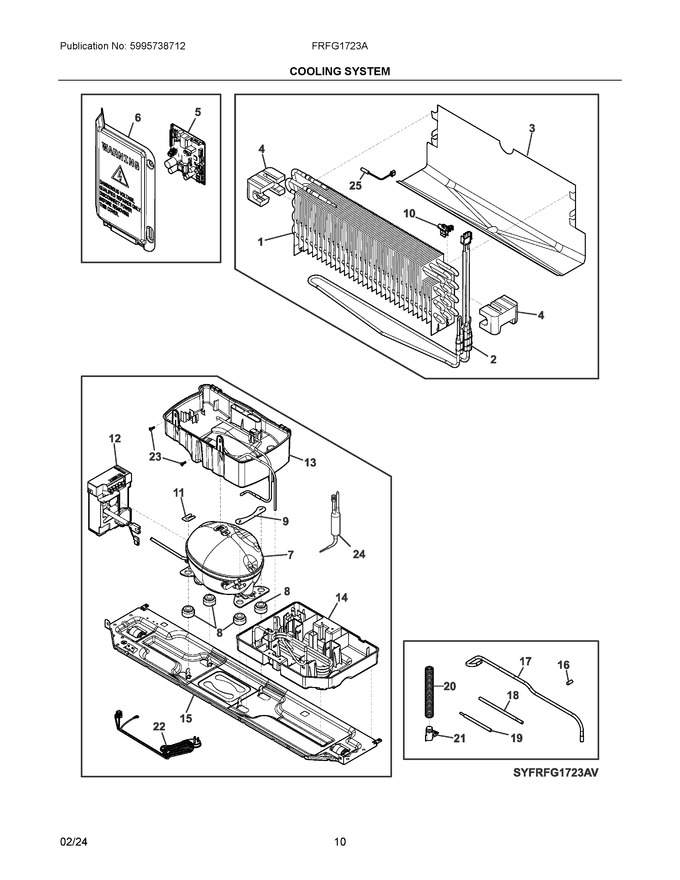

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529139		Evaporator, Coil			Immediately	$ 121.09
2	5304529140		Heater, Defrost, Evaporator			Immediately	$ 150.92
3	5304529143		Trough, Drain, Evaporator			Immediately	$ 70.37
4	5304529142		Support, Evaporator		Appelez-nous	-
5	5304535182		Control Board, Main, Erf2004, Power			Immediately	$ 214.47
6	5304529129		Housing, Control Board, Rear		Appelez-nous	-
7	5304529146		Compressor, Embraco, Fmxa9c				$ 354.85
8	811978901		Grommet, Compressor		Appelez-nous	-
9	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 2.89
10	811980406		Clamp, Ntc, Evaporator   (Replaces: 811980402)				$ 4.19
11	5304519152		Clamp, Compressor, Single Hole		Appelez-nous	-
12	5304529147		Inverter Assembly, Compressor, Fmx			Immediately	$ 370.99
13	5304536578		Drain Pan, Assembly, Compressor Mtg., W/tubing   (Replaces: 5304529150)				$ 14.05
14	5304529149		Drain Pan, Assembly, Side, W/tubing				$ 56.12
15	807822704		Base Assembly, Compressor, W/rollers		Appelez-nous	-
16	5304529162		Cap, Tubing				$ 4.55
17	5304529148		Tube, Jumper				$ 28.05
18	808293601		Tube, Process				$ 11.48
19	5304523065		Tubing, Extra, Refrigerant				$ 16.07
20	5304529151		Tube, Drain				$ 9.10
21	811976001		Valve Assembly, Drain				$ 9.10
22	5304536756		Cord, Power, Electric Servc   (Replaces: 5304529152)				$ 29.68
23	519092015		Screw, 4, 8x16 Ph		Appelez-nous	-
24	A19676501		Filter, Drier, Service			Immediately	$ 99.73
25	5304520944		Sensor, Temperature			Immediately	$ 20.74
NI	811949503		Screw, Truss, 4.2 X 13				$ 3.03
NI	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
NI	811908801		Cable Tie		Appelez-nous	-
NIA	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
NIA	5304529141		Seal, Connector, 3 Pin		Appelez-nous	-
NIA	5304519110		Screw, Trilob, M3 X 6				$ 3.03
NIA	808199001		Screw, Self Tapping, 6 X 20				$ 7.09
