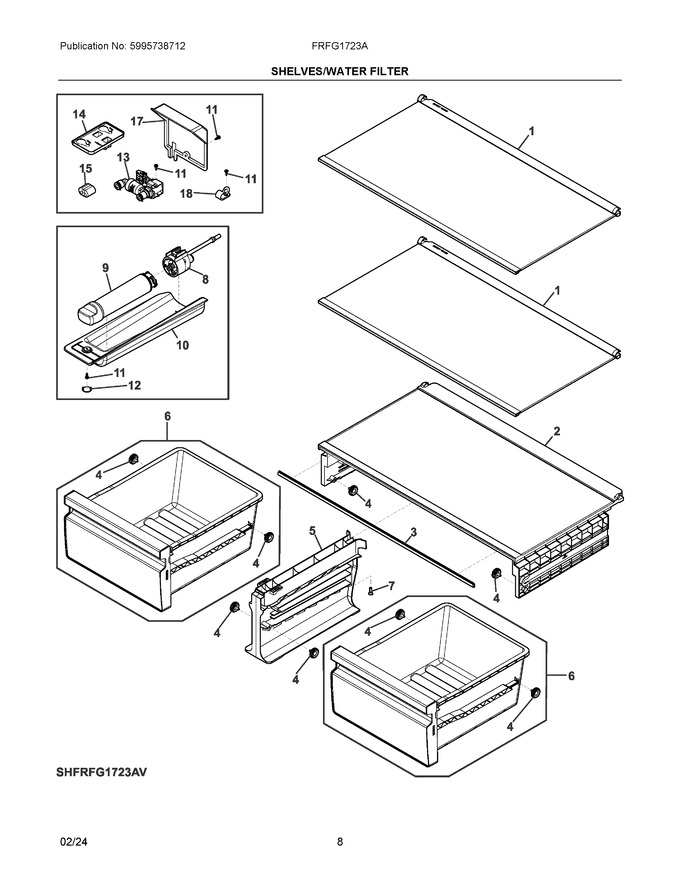

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529188		Shelf, Assembly, Glass, W/trim				$ 91.91
2	5304529189		Cover Assembly, Crisper			Immediately	$ 208.96
3	5304519140		Gasket, Crisper Cover, Front   (Replaces: 5304529192)			Immediately	$ 23.98
4	5304519124		Roller, Crisper Glide				$ 16.84
5	140056574027		Support, Crisper, Center		Appelez-nous	-
6	5304529193		Drawer Assembly, Crisper, W/rollers				$ 99.78
7	5304529191		Screw, Phil Slot, 12g X 13mm, Typ B		Appelez-nous	-
8	5304529157		Manifold, Water Filter, Connector				$ 90.86
9	EPTWFU01		Cs6 Wter Fltr, Frig Ps Ultra Ii			Immediately	$ 75.59
10	5304533534		Cover, Water Filter		Appelez-nous	-
11	811949503		Screw, Truss, 4.2 X 13				$ 3.03
12	5304529187		Cover, Screw, Water Filter		Appelez-nous	-
13	5304529158		Valve, Inlet, Filter, 1-way				$ 131.38
14	5304529156		Bracket, Manifold		Appelez-nous	-
15	5304529159		Grommet, Rear Tube		Appelez-nous	-
17	5304529161		Cover, Inlet Valve, Rear		Appelez-nous	-
18	240396803		Clamp, Tube/wiring, 5/16				$ 7.59
NI	5304519089		Screw, Self Tapping, M5 X 0.8				$ 6.07
NI	5304524004		Cover, Screw Hole, White			Immediately	$ 5.07
NIA	5304529160		Seal, Foam, Rear Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
