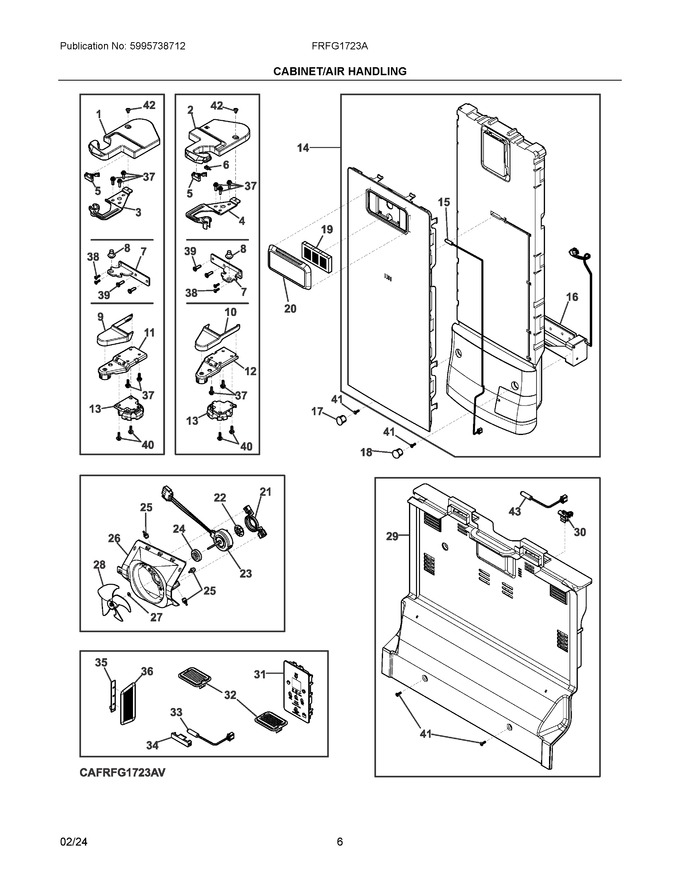

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140018267082 | Cover, Top Hinge, Lh (Replaces: 5304529185) |
|
- | |||||
| 2 | 5304535279 | Cover, Top Hinge, Rh (Replaces: 5304529183) |
|
- | |||||
| 3 | 5304529181 | Hinge, Door, Lh Top |
|
$ 19.72 | |||||
| 4 | 5304529182 | Hinge, Door, Rh Top |
|
$ 24.62 | |||||
| 5 | 5304532559 | Switch, Reed, Door (Replaces: 5304529184) |
|
$ 19.57 | |||||
| 6 | 140217317019 | Sensor, Humidity |
|
$ 21.43 | |||||
| 7 | 5304529177 | Hinge, Assembly, Center |
|
$ 28.27 | |||||
| 8 | 5304529178 | Pin, Door Hinge, Center |
|
Immediately | $ 9.86 | ||||
| 9 | 5304529123 | Cover, Foot, Lh Hinge |
|
$ 203.29 | |||||
| 10 | 5304529125 | Cover, Foot, Rh Hinge |
|
$ 9.49 | |||||
| 11 | 5304529126 | Foot Assembly, Anti Tip, Lh |
|
Immediately | $ 33.37 | ||||
| 12 | 5304537479 | Foot Assembly, Anti Tip, Rh (Replaces: 5304529127) |
|
Immediately | $ 19.55 | ||||
| 13 | 5304529124 | Roller Foot, Assembly |
|
$ 28.05 | |||||
| 14 | 5304529130 | Air Tower, Assembly, Fresh Food, W/damper-sensor |
|
$ 150.26 | |||||
| 15 | 5304529132 | Harness, Temperature, Fresh Food |
|
Immediately | $ 21.74 | ||||
| 16 | 5304529131 | Damper Assembly |
|
Immediately | $ 76.29 | ||||
| 17 | 5304529134 | Cover, Screw, Lh, Air Tower |
|
- | |||||
| 18 | 5304529135 | Cover, Screw, Rh, Air Tower |
|
- | |||||
| 19 | PAULTRA2 | Pure Air Ultra 2 Air Filter |
|
Immediately | $ 42.18 | ||||
| 20 | 140050812217 | Cover, Air Filter, Fresh Food (Replaces: 5304519171) |
|
- | |||||
| 21 | 5304519177 | Clip, Retainer |
|
$ 8.34 | |||||
| 22 | 5304519178 | Grommet, Fan Mounting |
|
Immediately | $ 7.59 | ||||
| 23 | 809069207 | Motor, Fan, Frz Evaporator |
|
Immediately | $ 148.78 | ||||
| 24 | 5304529138 | Grommet, Fan |
|
$ 9.10 | |||||
| 25 | 811972801 | Grommet, Evap Fan, Side |
|
$ 7.09 | |||||
| 26 | 811975001 | Shroud, Evaporator Fan |
|
$ 15.32 | |||||
| 27 | 5304519176 | Washer, Slinger, Nylon |
|
$ 3.03 | |||||
| 28 | 811699604 | Blade, Evaporator Fan |
|
Immediately | $ 4.19 | ||||
| 29 | 5304529145 | Cover Assembly, Evaporator |
|
$ 83.14 | |||||
| 30 | 811980406 | Clamp, Ntc, Evaporator (Replaces: 811980402) |
|
$ 4.19 | |||||
| 31 | 140040668141 | User Interface, Assembly, Control (Replaces: 5304529137) |
|
$ 136.46 | |||||
| 32 | 5304529136 | Cover, Grid, Air Return |
|
- | |||||
| 33 | 242515406 | Sensor, Reed, Freezer Drawer, Potted |
|
Immediately | $ 87.21 | ||||
| 34 | 807917002 | Cover, Reed Switch, Freezer |
|
- | |||||
| 35 | 5304523011 | Light Board, 3 Led Cluster, 6500k |
|
Immediately | $ 48.85 | ||||
| 36 | 5304519099 | Lens, Led Light |
|
Immediately | $ 12.13 | ||||
| 37 | 811949401 | Screw, Trilob, M5 X 16 |
|
Immediately | $ 5.31 | ||||
| 38 | 5304523029 | Screw, Trilobular, M4 X 12 |
|
- | |||||
| 39 | 807826801 | Screw, Trilob, M6 X 18, Center Hinge |
|
$ 6.82 | |||||
| 40 | 811949409 | Screw, Trilob, M5 X 16 |
|
- | |||||
| 41 | 5304529133 | Screw, Tapping Ph, M4 X 16 |
|
- | |||||
| 42 | 5304519089 | Screw, Self Tapping, M5 X 0.8 |
|
$ 6.07 | |||||
| 43 | 5304520944 | Sensor, Temperature |
|
Immediately | $ 20.74 | ||||
| NI | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| NIA | 5304520470 | Seal, Motor Connector, 4 Pin |
|
$ 13.56 |
