SELECT A DIAGRAM
01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

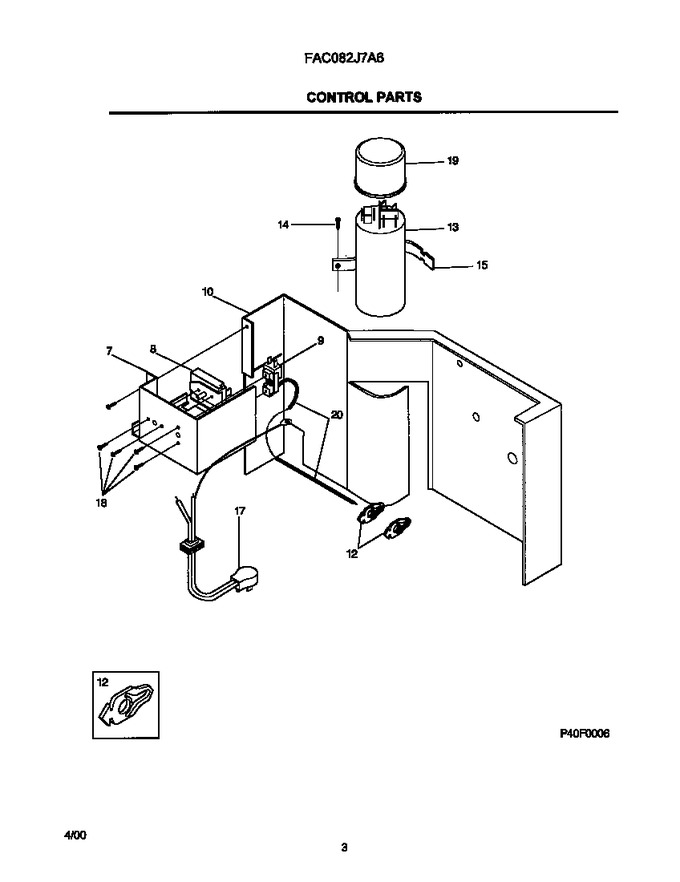

| 7 | 309340401 | Control Box |
|
- | |||||
| 8 | 5303323284 | Switch-selector |
|
- | |||||
| 9 | 5304402838 | Control-temperature |
|
- | |||||
| 10 | 309602403 | Bulkhead |
|
- | |||||
| 12 | 309101202 | Clip-control Bulb, (2) |
|
- | |||||
| 13 | 5303318963 | Capacitor,370 V |
|
- | |||||
| 14 | 5303303691 | Screw,truss Head `8-18ab X 0.375 ,w/nibs |
|
- | |||||
| 15 | 5303303086 | Strap-capacitor |
|
- | |||||
| 17 | 309343101 | Cord-srv 115v/18ga Lt. Grey |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 19 | 5303302855 | Cover-capacitor |
|
- | |||||
| 20 | 5303002600 | Sleeve, Control |
|
- |
