SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts

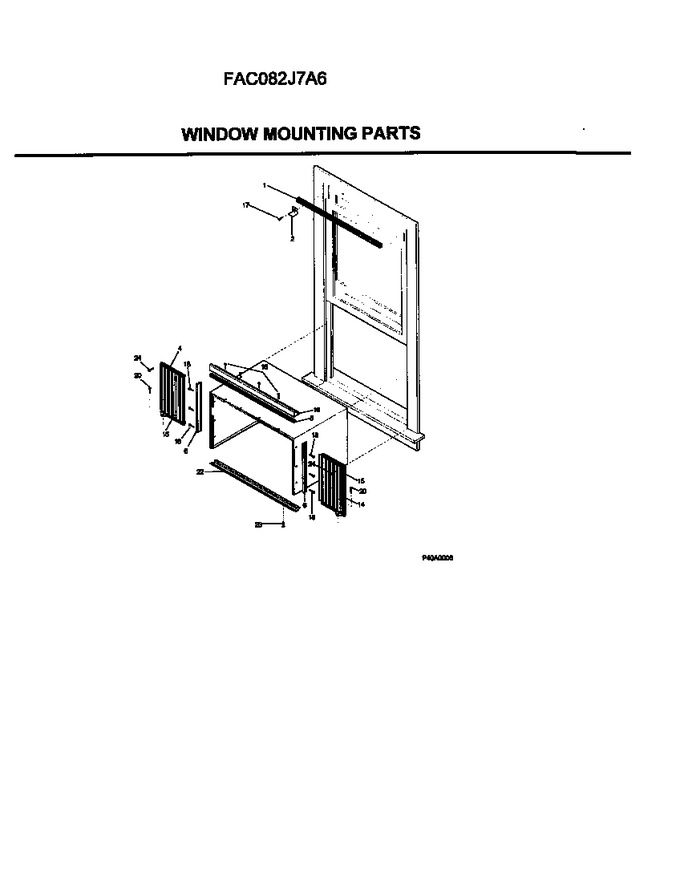

06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal-window Frame,top		Appelez-nous	-
2	5303211056		Bracket		Appelez-nous	-
4	5304413847		Frame-lh		Appelez-nous	-
5	08016226		Seal, Top Rail		Appelez-nous	-
14	5304413848		Frame-rh		Appelez-nous	-
15	309626504		Accordian		Appelez-nous	-
16	5304413784		Rail-top Ncs1403		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
20	5303295750		Screw,pan Head ,8-18 X 0.750		Appelez-nous	-
22	5304403252		Retainer,bottom		Appelez-nous	-
23	3001806		Screw,23(t) ,10-32 X 0.310		Appelez-nous	-
24	5308002974		Screw,wood, Type 17 ,8-15 X 0.500		Appelez-nous	-
*44640	5304414891		Ext		Appelez-nous	-
*44641	5304414892		Ext		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
