SELECT A DIAGRAM

01 - Cover


02 - Cabinet Front And Wrapper


03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts

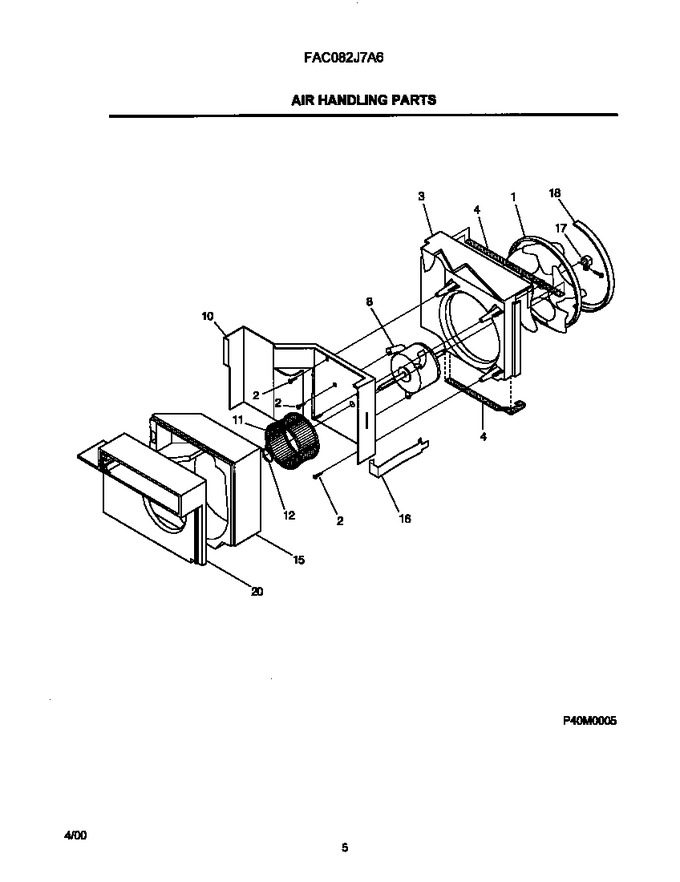

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309624502		Fan Blade,with Clamp				$ 85.31
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
2	08007481		Nut				$ 5.81
3	309624201		Housing-fan		Appelez-nous	-
4	5303270043		Seal, Condenser		Appelez-nous	-
8	309631502		Mtr-fan Ge C/s 3sp;1/10hp;115		Appelez-nous	-
10	309602403		Bulkhead		Appelez-nous	-
11	309603301		Blower Wheel				$ 57.65
12	5303012110		Clamp-blower				$ 8.14
15	5304407653		Housing-blower		Appelez-nous	-
16	309100201		Clip		Appelez-nous	-
20	5304407654		Plate-blower Housing,scroll Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
