Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304414415 +compressor-sanyo 806-623-42 Appelez-nous -
2 5303283877 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
6 3200282 Gasket-cover Appelez-nous -
7 3200281 Cover-terminal Appelez-nous -
8 3202920 Overload Protector Appelez-nous -
9 5303211017 Nut-cover Appelez-nous -
10 5303317601 Start Assist Kit,compressor Special Order $ 148.05

11 309604207 Evaporator Appelez-nous -
12 5303302850 Condenser Appelez-nous -
13 5303302849 Tray-evaporator Appelez-nous -
14 5304413780 Base-compr/std Assy Comp 1403 Appelez-nous -
16 3203179 Capillary Tube Appelez-nous -
17 5304413933 Ext Appelez-nous -
19 5303002664 Washer,compressor Mtg Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

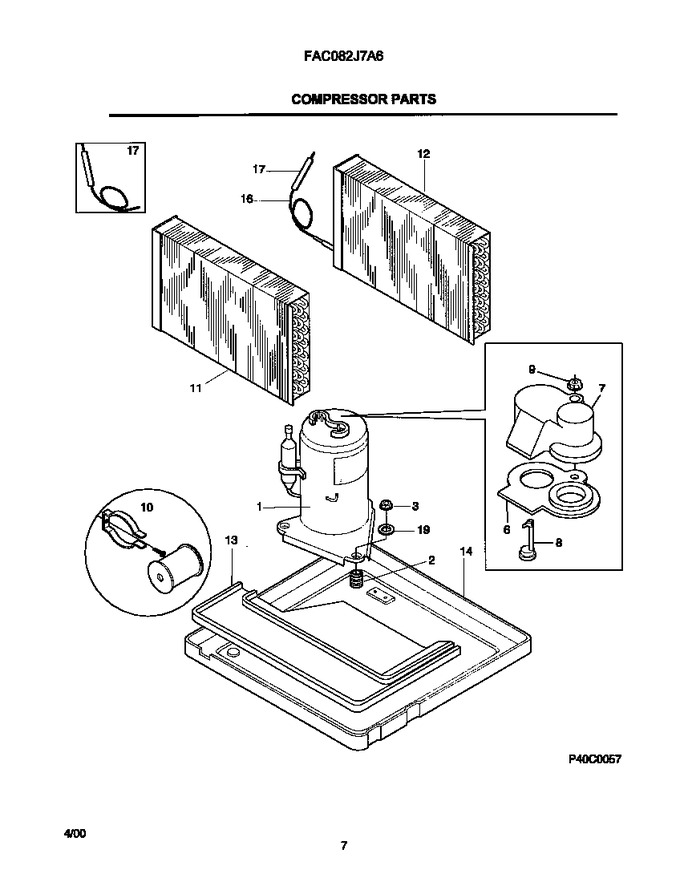

Diagram for FAC082J7A6
