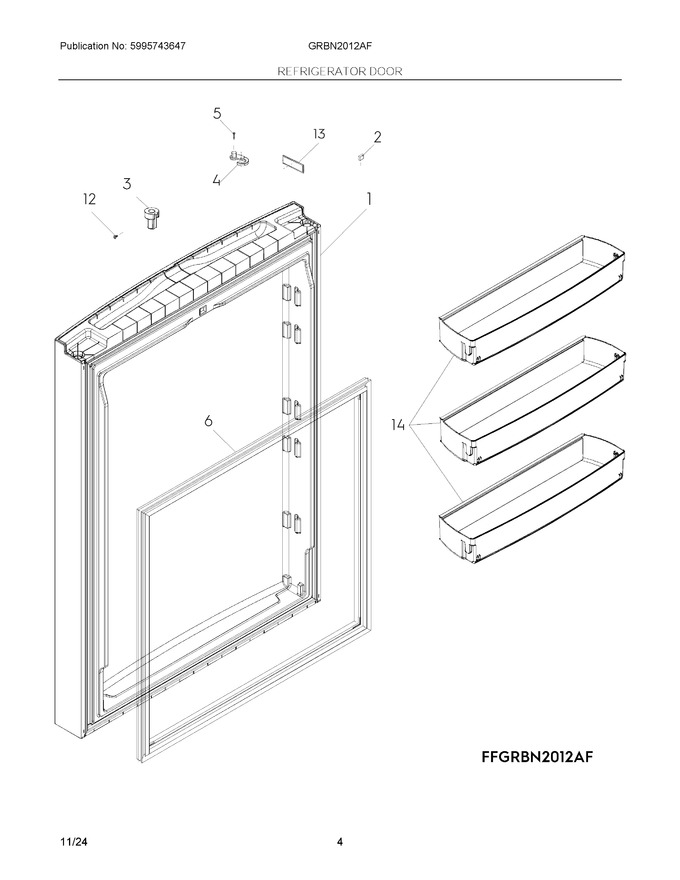

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304536921 | Door-complete,fresh Food |
|
$ 352.35 | |||||
| 2 | 5304519044 | Magnet,reed Switch |
|
Immediately | $ 18.95 | ||||
| 3 | 5304520519 | Bearing,hinge ,stainless ,door |
|
Immediately | $ 9.10 | ||||
| 4 | 140010465148 | Bearing, Door, Autocloser |
|
$ 6.00 | |||||
| 5 | 808337901 | Screw,pf Ab Pfz Pf ,3.5x1.27x19 |
|
$ 3.03 | |||||
| 6 | 5304536717 | Gasket,door ,fresh Food |
|
$ 41.18 | |||||
| 12 | 5304519084 | Screw,flange Pnhd Phl ,8g X 1/2 |
|
- | |||||
| 13 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 58.15 | ||||
| 14 | 5304536734 | Bin,gallon ,door |
|
$ 26.89 |
