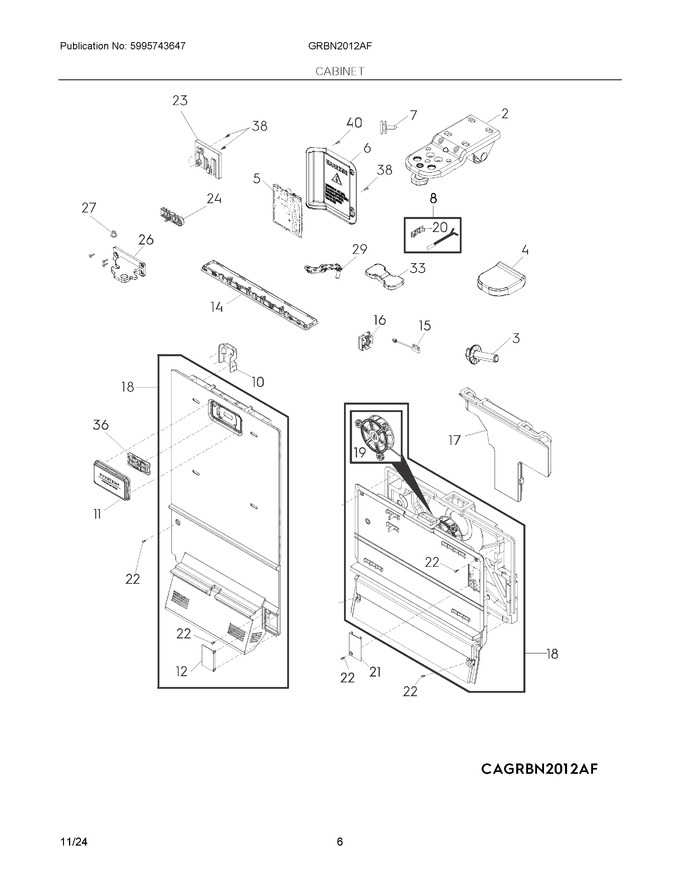

04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Ice Maker
09 - Wiring Schematic
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304536678 | Foot Assembly,complete ,w/level-roller |
|
$ 60.78 | |||||
| 3 | 811949401 | Screw,trilob ,m5 X 16 |
|
Immediately | $ 5.31 | ||||
| 4 | 140206803029 | Cover,foot Bracket ,lower |
|
$ 3.73 | |||||
| 5 | 97392506071200 | Main Board,assembly ,erf2507 |
|
- | |||||
| 6 | 140194404012 | Cover,main Control ,rear |
|
$ 15.72 | |||||
| 7 | 241695906 | Screw, 10-16ab X 0.50 |
|
$ 19.13 | |||||
| 8 | 5303918905 | Sensor Kit,temperature ,w/cover |
|
Immediately | $ 32.31 | ||||
| 9 | 5304536925 | Air Tower,assembly ,service , W/baffle Motor (Replaces: 5304537079) |
|
Immediately | $ 114.82 | ||||
| 10 | 5304536680 | Bracket,indexing ,air Tower |
|
$ 3.73 | |||||
| 11 | 5304536926 | Cover,air Filter |
|
$ 17.61 | |||||
| 12 | 5304536927 | Cover,service ,lower |
|
- | |||||
| 13 | 140188105039 | Led Light,assembly ,single ,w/lens |
|
Immediately | $ 43.83 | ||||
| 14 | 5304536685 | Led Light,assembly ,fresh Food ,triple Led |
|
Immediately | $ 73.38 | ||||
| 15 | 5304532559 | Switch,reed ,door (Replaces: 5304529184) |
|
$ 19.57 | |||||
| 16 | 5304519100 | Cover,reed Switch |
|
$ 7.96 | |||||
| 17 | 5304538331 | Duct Assembly,return ,fresh Food (Replaces: 5304536928) |
|
- | |||||
| 18 | 5304536929 | Cover Assembly,evaporator ,freezer ,w/motor |
|
Immediately | $ 124.33 | ||||
| 19 | 5304536692 | Fan Assembly,evaporator |
|
Immediately | $ 101.52 | ||||
| 20 | 5304537119 | Cover,temp Sensor |
|
- | |||||
| 21 | 5304536693 | Cover,service Door |
|
$ 4.01 | |||||
| 22 | 5304536681 | Screw,hilo ,m4.2 X 16 |
|
$ 0.35 | |||||
| 23 | 5304536699 | Cover,hose Housing ,rear |
|
$ 5.41 | |||||
| 24 | 5304536708 | Insulator,hose Housing |
|
$ 3.73 | |||||
| 25 | 5304536700 | Clamp,water Tubing |
|
$ 3.57 | |||||
| 26 | 140072822053 | Hinge Assembly,center |
|
Immediately | $ 23.62 | ||||
| 27 | 5304529178 | Pin,door Hinge ,center |
|
Immediately | $ 9.86 | ||||
| 28 | 5304536716 | Screw,thread ,m5 X 17mm |
|
$ 0.35 | |||||
| 29 | 140129596064 | Hinge,door ,top (Replaces: 5304536718) |
|
- | |||||
| 33 | 5304536719 | Cover,hinge ,top |
|
Immediately | $ 3.94 | ||||
| 36 | FRGPAAF1 | Air Filter,assembly (Replaces: 5304530334) |
|
Immediately | $ 29.77 | ||||
| 38 | 811949503 | Screw,truss ,4.2 X 13 |
|
$ 3.03 | |||||
| 40 | 5304523032 | Screw,trilob ,m4 X 7.5 |
|
- | |||||
| NIA | 808337901 | Screw,pf Ab Pfz Pf ,3.5x1.27x19 |
|
$ 3.03 |
