01 - Cover Sheet
02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Ice Maker
09 - Wiring Schematic
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

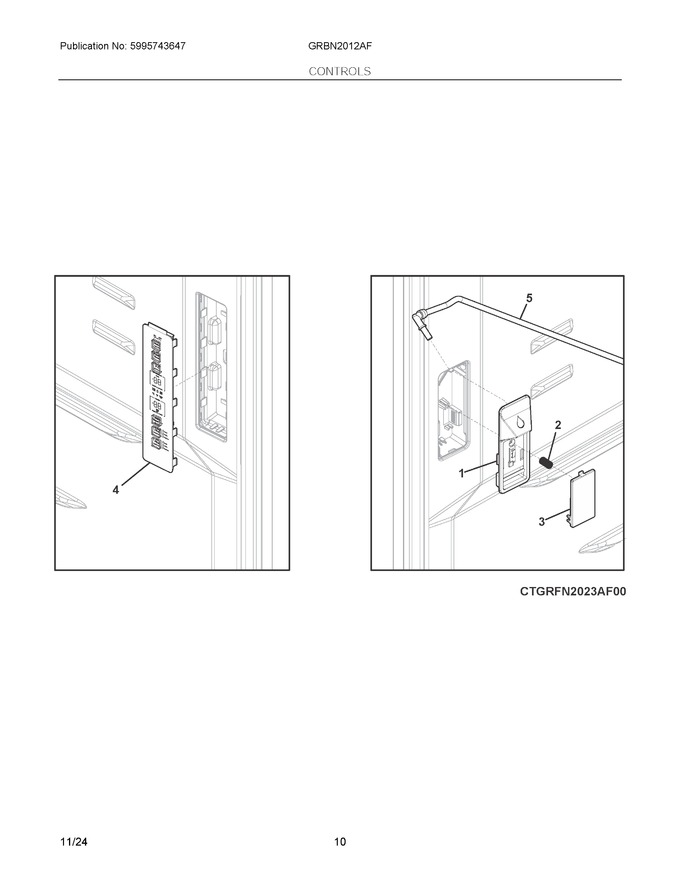

| 1 | 5304536682 | Dispenser Assembly,water ,interior ,w/microswitch |
|
$ 66.64 | |||||
| 2 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.11 | ||||
| 3 | 5304536683 | Paddle,water Dispenser |
|
$ 12.50 | |||||
| 4 | 5304536684 | User Interface,assembly ,w/board-overlay |
|
Immediately | $ 165.16 | ||||
| 5 | 5304536703 | Tubing,water ,yellow ,dispenser |
|
$ 41.87 | |||||
| NIA | 5304536709 | Insulator,dispenser Tube |
|
$ 3.13 |
