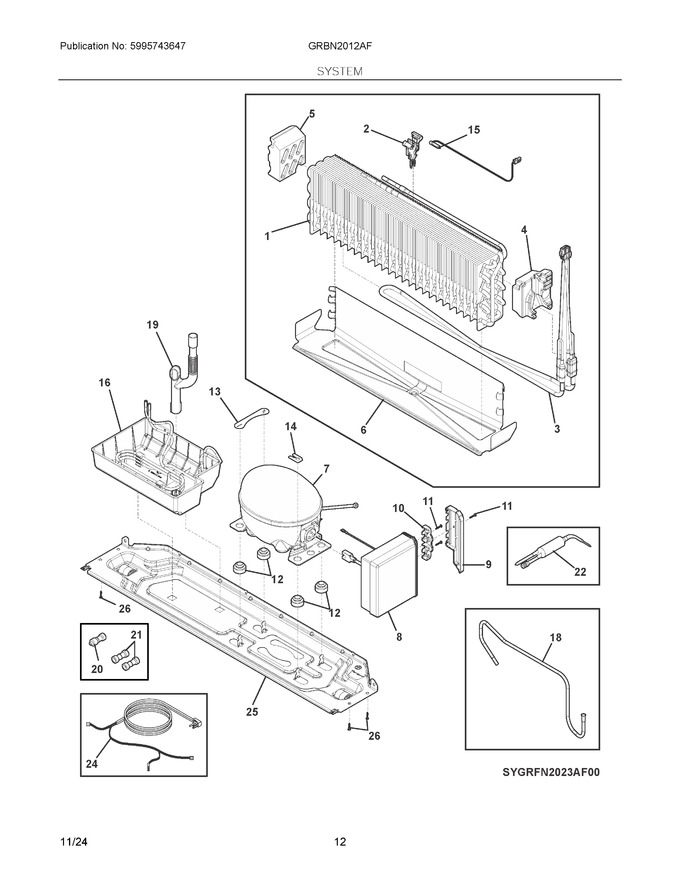

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536686		Evaporator,assembly			Immediately	$ 141.11
2	5304536687		Clip,evaporator				$ 2.53
3	5304536688		Heater,defrost ,2 Pass ,evaporator			Immediately	$ 163.67
4	5304536689		Support,evaporator ,rh				$ 6.65
5	5304536690		Support,evaporator ,lh				$ 6.65
6	5304536691		Trough,heat Shield ,evaporator				$ 49.76
7	5304536694		Compressor,vtx1113y			Immediately	$ 423.00
8	5304536695		Pc Board,inverter				$ 252.48
9	5304533517		Cover,flex Drive ,side ,compressor		Appelez-nous	-
10	5304526793		Clamp,flex Drive ,cable				$ 9.10
11	5304532654		Screw,flex Drive ,4*10 Hi Lo		Appelez-nous	-
12	811978901		Grommet,compressor		Appelez-nous	-
13	5304533505		Clamp,compressor ,2 Hole		Appelez-nous	-
14	5304519152		Clamp,compressor ,single Hole		Appelez-nous	-
15	5303918851		Thermostat Kit,defrost ,w/connectors			Immediately	$ 36.75
16	5304536696		Drain Pan,assembly ,w/heater Tube				$ 46.16
18	5304536697		Tube,suction ,jumper				$ 28.72
19	5304536698		Tube,drain				$ 16.62
20	L13000622		Lock Ring,drier ,3n St 01			Immediately	$ 11.72
21	L13000584		Lokring,4n St 82			Immediately	$ 7.15
22	A19676501		Filter,drier ,service			Immediately	$ 99.73
24	140123753034		Power Cord,electric Srvc		Appelez-nous	-
25	5304536679		Base Assembly,compressor ,w/rollers				$ 59.69
26	808199001		Screw,self Tapping ,6 X 20				$ 7.09
NI	5304523032		Screw,trilob ,m4 X 7.5		Appelez-nous	-
NI	811949503		Screw,truss ,4.2 X 13				$ 3.03
