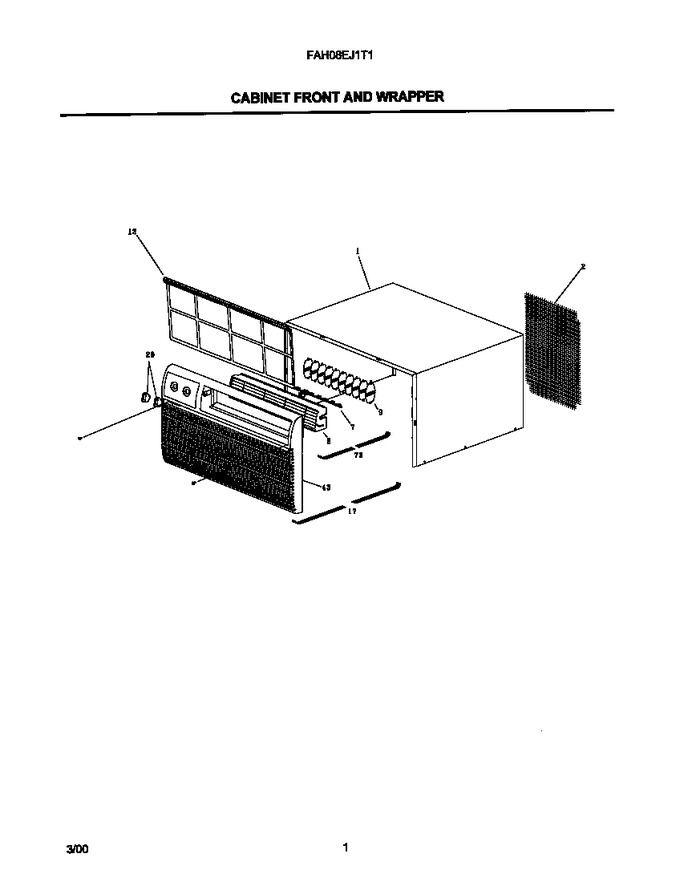

02 - Wrapper & Front Panel
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309627504 | Wrapper-u-bend 18.5bld (1403) |
|
- | |||||
| 2 | 309636101 | Screen-safety 18.5bld |
|
- | |||||
| 7 | 309324004 | Link-handle |
|
- | |||||
| 8 | 309628004 | Louver-horiz |
|
- | |||||
| 9 | 309628104 | Louver-vertical |
|
$ 4.41 | |||||
| 12 | 309628204 | Filter-molded Air 1403 Grey |
|
$ 47.09 | |||||
| 14 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- | |||||
| 17 | 309629406 | Front Assy-18.5bld El Ht Fac |
|
- | |||||
| 20 | 309307011 | Knob-control(1403;w/6502) |
|
- | |||||
| 43 | 309631806 | Fnt/ctrl Lbl Asm-18.5bd H Fac |
|
- | |||||
| 73 | 309629304 | Lver Assy-18.5bld Grey Fac |
|
$ 104.21 | |||||
| *34640 | 5304408740 | Panel-rear Plastic 18.5bld |
|
- |
