SELECT A DIAGRAM

01 - Cover


02 - Wrapper & Front Panel


03 - Control Parts

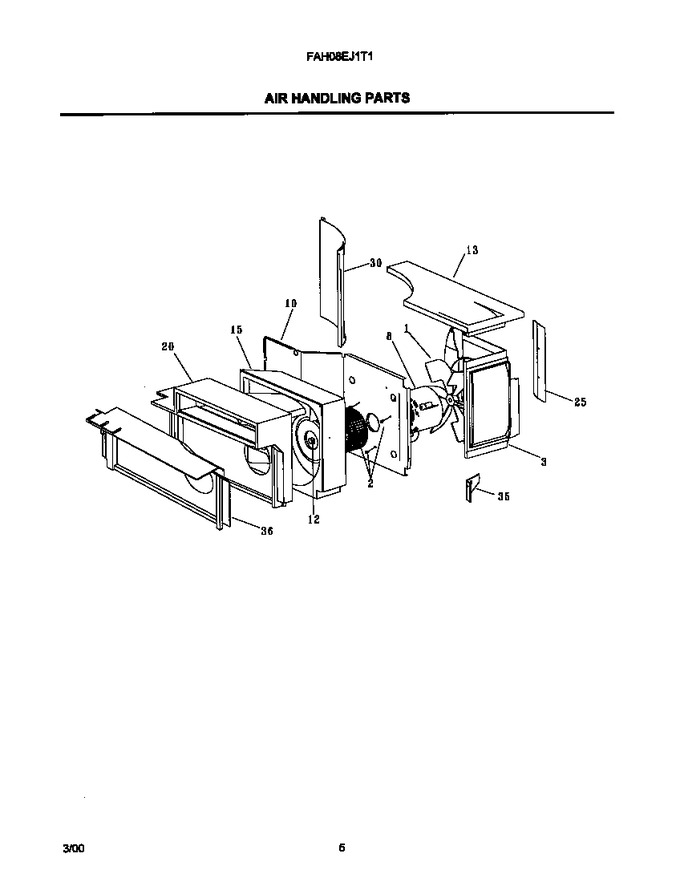

04 - Air Handling Parts


05 - Compressor Parts


06 - Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3202975		Screw`10-16 X 0.72 ,square Drive		Appelez-nous	-
3	309628901		Shroud-condenser 18.5 Bld		Appelez-nous	-
8	5304409513		Motor-fan Ge 2sp W/lds 48fr		Appelez-nous	-
10	309627401		Bulkhead-18.5chassis (flex)		Appelez-nous	-
11	309631701		Blower Wheel-18.5 Bld				$ 19.90
12	5303012110		Clamp-blower				$ 8.14
13	309628802		Top-condenser 18.5 (ncs1403)		Appelez-nous	-
15	309622802		Scroll-18.5 Tc Bld El Ht(blk)		Appelez-nous	-
20	309625501		Scroll Plate-18.5 Tc Bld Eh		Appelez-nous	-
25	309335201		Baffle-air 18.5``		Appelez-nous	-
30	309629001		Partition-shroud		Appelez-nous	-
35	309335001		Baffle-condensate For Motor		Appelez-nous	-
36	309633401		Heat Shield-el Ht		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
