01 - Cover
02 - Wrapper & Front Panel

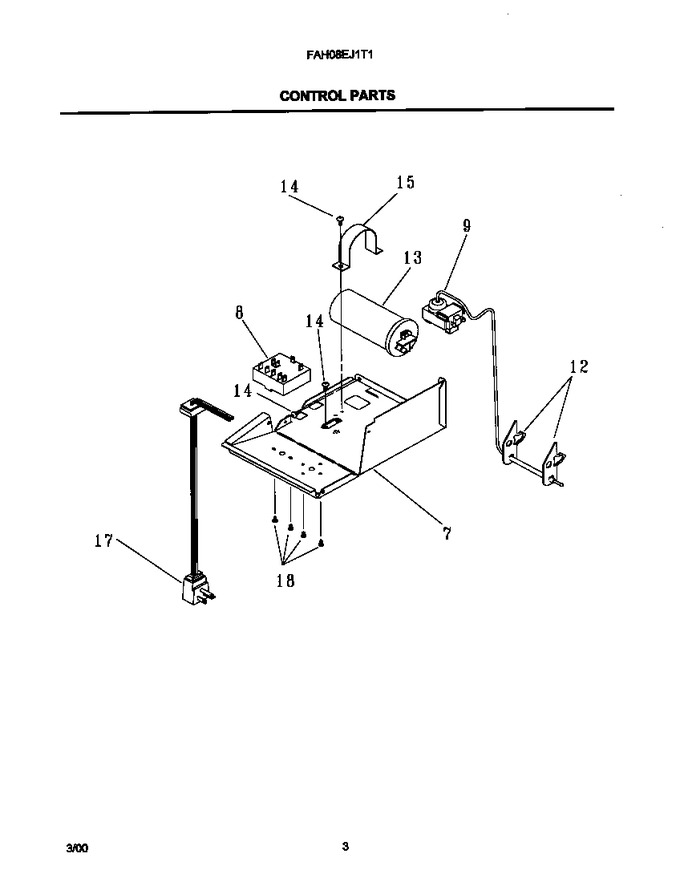

03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 309628502 | Box-control 18.5tc El Ht |
|
- | |||||
| 8 | 309329301 | Switch-elec Ht 2sp .75``shaft |
|
- | |||||
| 9 | 5304409496 | Control-ge (18.5) |
|
- | |||||
| 12 | 309329801 | Retaining Clip-sens Bulb |
|
- | |||||
| 13 | 5303303576 | Capacitor, 370 V, 10+35 Mfd |
|
- | |||||
| 14 | 5303303691 | Screw, 8-18ab X 0.38 |
|
- | |||||
| 15 | 5303303077 | Strap - Capacitor |
|
- | |||||
| 17 | 309343104 | Cord-srv 115v/14ga |
|
- | |||||
| 18 | 5303007754 | Screw,6-32 X 0.188 |
|
- | |||||
| 35 | 3200761 | Spacer - Control Bulb |
|
- | |||||
| 37 | 5304409500 | +harness-wir Htr 18.5 14awg |
|
- | |||||
| *34641 | 309111201 | Grommet-wires |
|
- |
