Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303300200 Compressor Appelez-nous -
2 5303283877 Grommet,compressor Mtg ,(3) Appelez-nous -
3 5308006948 Nut,compressor Mtg ,(3) Appelez-nous -
6 5303002035 Gasket-cover Appelez-nous -
7 5303211011 Cover-terminal Appelez-nous -
8 5303211026 Overload Protector Special Order $ 136.71

9 5303301734 Nut-cover Appelez-nous -
11 309632303 +evap Assy-18.5 2rw/17fpi Appelez-nous -
12 309632503 +cond Assy-18.5nsl 3r/15fpi Appelez-nous -
13 309628702 Tray-base El Ht Appelez-nous -
14 309628702 Tray-base El Ht Appelez-nous -
15 309629501 Heat Shield-18.5t/c Bld Appelez-nous -
16 5303209547 Capillary Tube Appelez-nous -
17 5300265301 Drier-filter Special Order $ 284.30

19 5303002664 Washer,compressor Mtg Appelez-nous -
20 5303002036 Spring-overload Appelez-nous -
21 5303295516 Washer-cover Appelez-nous -
27 309627004 +heater Assy-18.5 115v/1250w Appelez-nous -
29 5303307047 Harness-heater Appelez-nous -
30 3017804 Valve-drain Appelez-nous -
32 3018695 Nut-heater Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

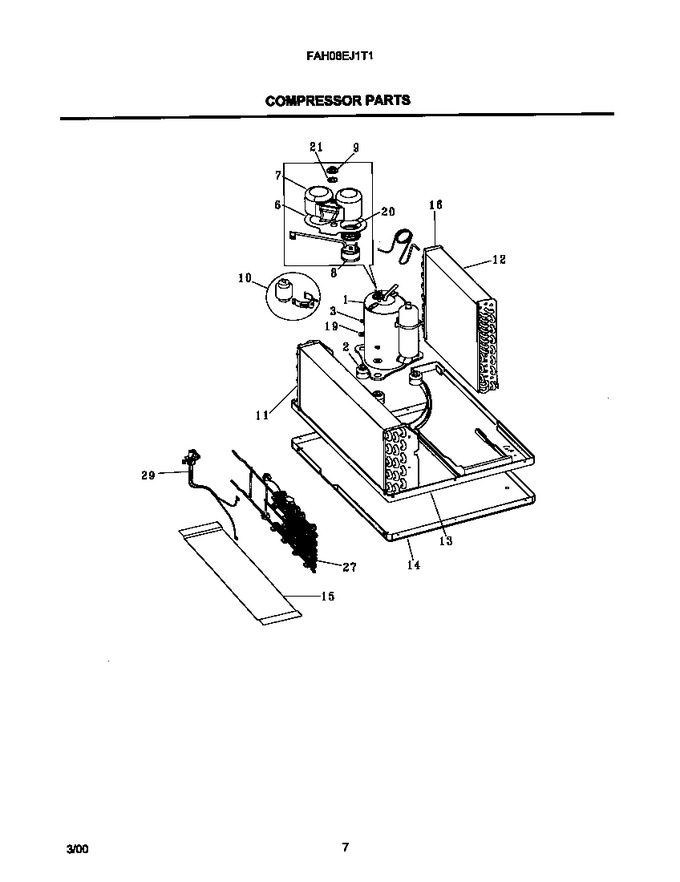

Diagram for FAH08EJ1T1
