01 - Cover Sheet
02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Wiring Schematic
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

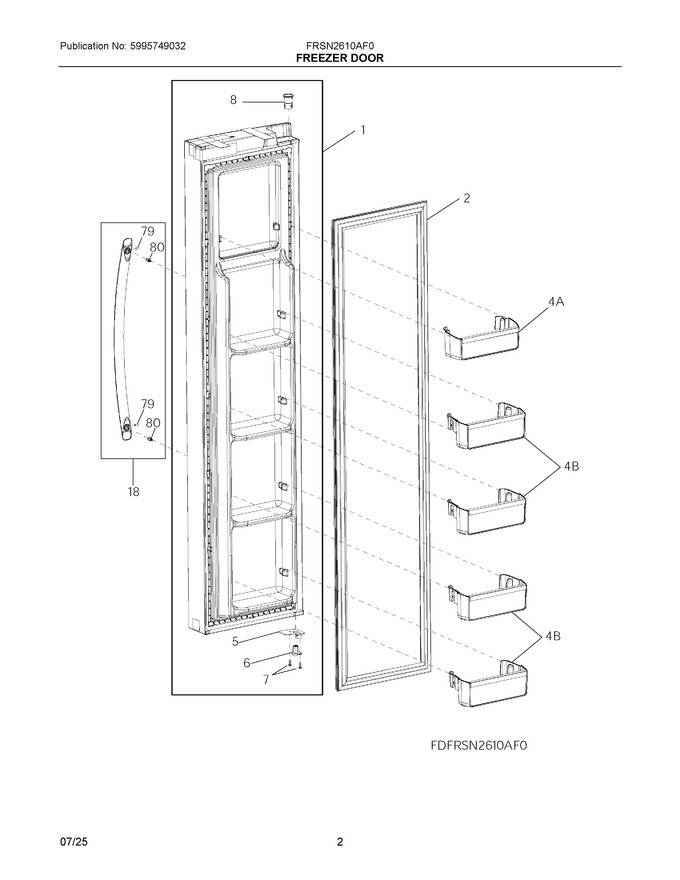

| 1 | 5304537323 | Door Assembly, Freezer, Stainless, Complete |
|
$ 314.39 | |||||
| 2 | 241786014 | Gasket Assembly, Freezer Door |
|
$ 95.17 | |||||
| 5 | 241990202 | Door Stop, Black, Freezer, Lower |
|
Immediately | $ 21.27 | ||||
| 6 | 241990302 | Bearing Hinge, Lower, Freezer Door, Closer |
|
$ 7.09 | |||||
| 7 | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 8 | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 18 | 5304531229 | Handle, Door, Stainless, Fresh Food |
|
$ 153.09 | |||||
| 25 | 5304539493 | Glass Shelf, Assembly, Freezer, Lower |
|
$ 20.21 | |||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 4A | 5304536364 | Bin Assembly, Pseudo, Upper (Replaces: 5304525907) |
|
$ 25.80 | |||||
| 4B | 5304536365 | Bin Assembly, Pseudo, Lower (Replaces: 5304525908) |
|
Immediately | $ 25.65 | ||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 |
