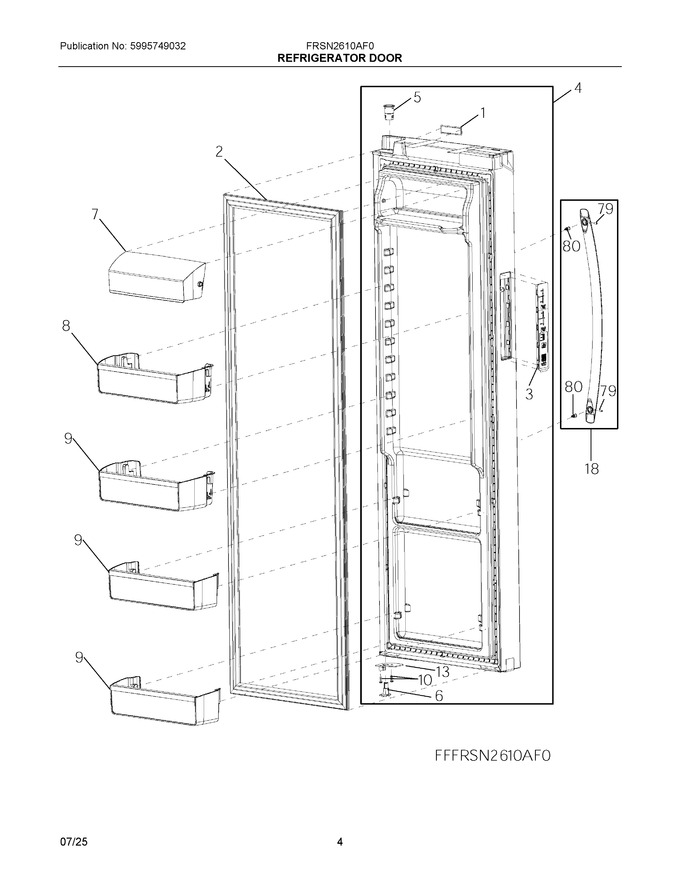

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Freezer Door
03 - Refrigerator Door
04 - Cabinet
05 - Shelves
06 - Controls
07 - System
08 - Wiring Schematic
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 2 | 241786013 | Gasket-door, Magnetic |
|
$ 95.90 | |||||
| 3 | 140180124095 | User Interface Board, Side Control |
|
- | |||||
| 4 | 5304537319 | Door Assembly, Fresh Food, Stainless, Complete |
|
$ 415.60 | |||||
| 5 | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 | |||||
| 6 | 5304537355 | Bearing, Hinge, Lower, Fresh Food |
|
- | |||||
| 7 | 5304525904 | Cover, Compartment, Dairy |
|
Immediately | $ 61.56 | ||||
| 8 | 5304536368 | Bin Assembly, Gallon, Ff Door (Replaces: 5304525905) |
|
Immediately | $ 30.37 | ||||
| 9 | 5304536363 | Bin Assembly, 2 Liter, Ff Door (Replaces: 5304525906) |
|
$ 44.75 | |||||
| 10 | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 13 | 241990201 | Door Stop, Black, Refrigerator |
|
$ 21.27 | |||||
| 18 | 5304531229 | Handle, Door, Stainless, Fresh Food |
|
$ 153.09 | |||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 |
