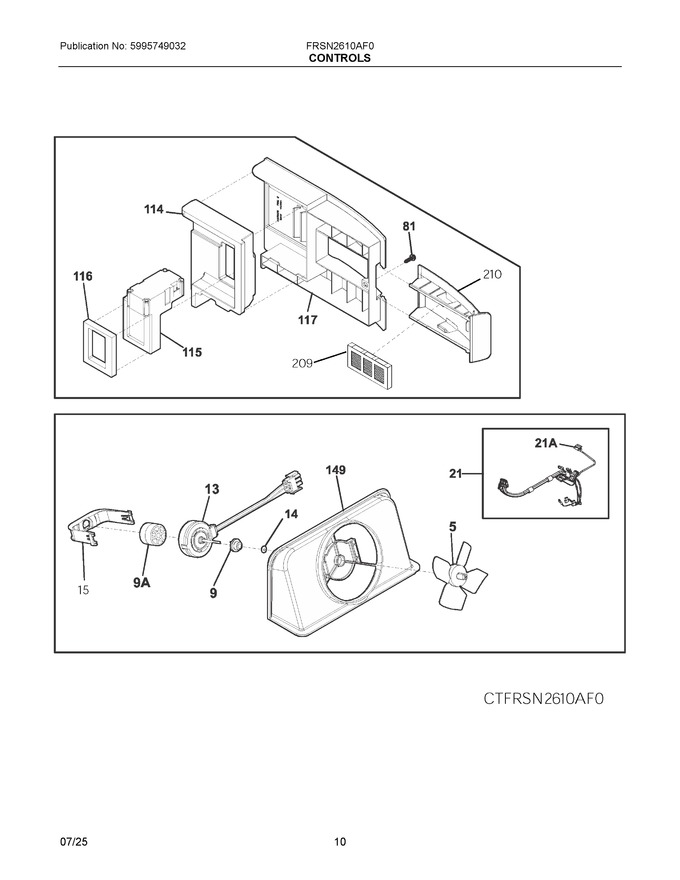

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 242219302 | Blade, Condenser Fan, Fan |
|
Immediately | $ 17.44 | ||||
| 9 | 241563601 | Bushing-motor Mtg |
|
Immediately | $ 17.72 | ||||
| 13 | 140282033103 | Motor Evaporator, Fan (Replaces: 140282033012) |
|
Immediately | $ 56.30 | ||||
| 14 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 15 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 7.79 | |||||
| 21 | 140130970050 | Harness Assembly, Low Side, Dc, Evap Fan (Replaces: 5304526980) |
|
Immediately | $ 23.81 | ||||
| 81 | 218843801 | Screw, Hex Wshr Hd ,8-15a X 0.500 |
|
$ 14.41 | |||||
| 114 | 5304525913 | Insulation, Damper Cover |
|
$ 10.62 | |||||
| 115 | 5303918899 | Damper, Motorized (Replaces: 241518501) |
|
Immediately | $ 73.24 | ||||
| 116 | 241518601 | Seal-damper, Foam |
|
$ 9.22 | |||||
| 117 | 5304525914 | Cover, Damper |
|
Immediately | $ 23.82 | ||||
| 149 | 5304521331 | Shroud-evap Fan Mtg, W/seal |
|
$ 79.62 | |||||
| 209 | PAULTRA2 | Air Filter, Pure Air 2 |
|
Immediately | $ 42.18 | ||||
| 210 | 5304525915 | Housing, Air Filter |
|
$ 14.46 | |||||
| 21A | 5303918645 | Thermistor Kit, Evaporator, W/connector |
|
Immediately | $ 84.60 | ||||
| 9A | 241845301 | Bushing-motor Mtg |
|
$ 22.68 |
