SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Wiring Schematic

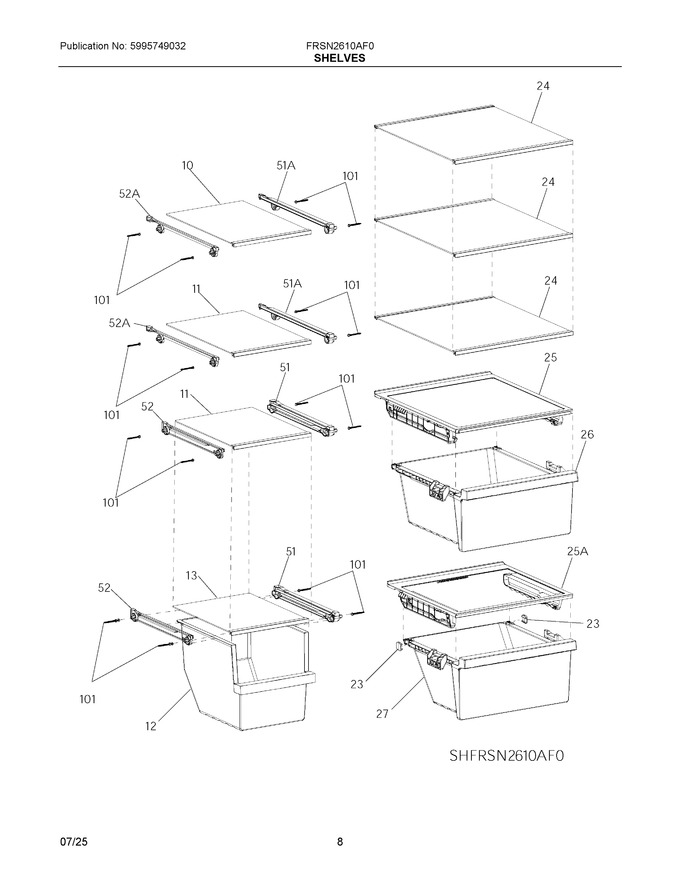

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	140279024453		Glass Shelf Assembly, Freezer, Upper		Appelez-nous	-
11	5304539493		Glass Shelf, Assembly, Freezer, Lower				$ 20.21
12	5304525919		Basket, Freezer, Sliding				$ 72.15
13	140279024537		Glass Shelf Assembly, Lower		Appelez-nous	-
23	5304525911		Clip, Slide, Crisper			Immediately	$ 10.62
24	5304539492		Glass Shelf Assembly, Refrigerator				$ 43.49
25	5304525934		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket			Immediately	$ 161.28
26	5304535020		Cridsper Pan, Upper, W/slide Clips		Appelez-nous	-
27	5304535021		Cridsper Pan, Lower, W/slide Clips		Appelez-nous	-
51	240343002		Hanger-basket, Rh				$ 65.22
52	240343102		Hanger-basket, Lh				$ 69.77
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
25A	5304535254		Crisper Cover, Assembly, Glass, Lower		Appelez-nous	-
51A	240395502		Hanger-basket, Glass Shelf, Rh				$ 73.00
52A	240395602		Hanger-basket Glass Shelf, Lh				$ 61.66

    View Diagram in Separate Window       Print Part List
