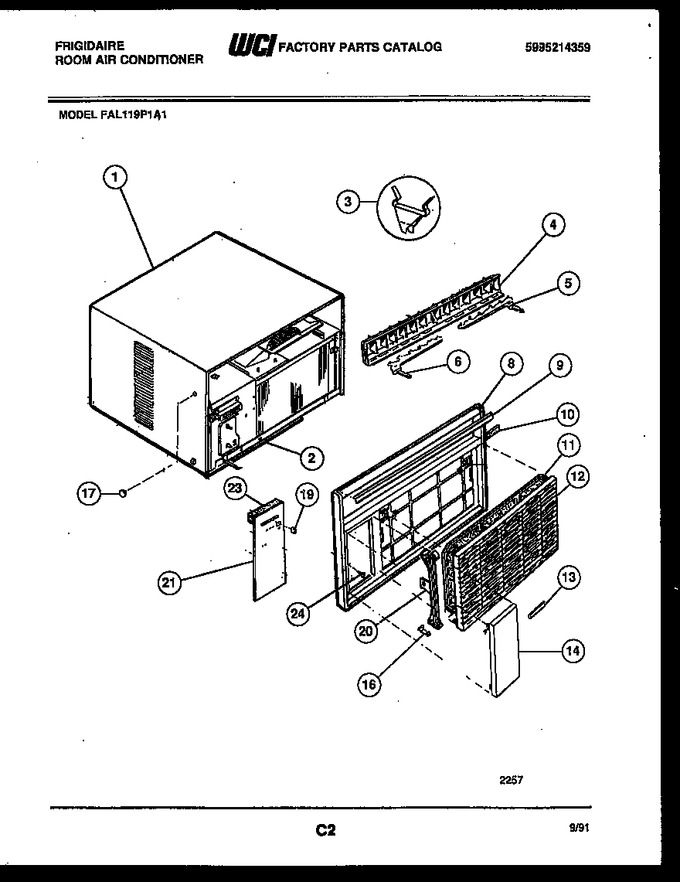

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Unit Parts
06 - Compressor Parts
07 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271901 | Wrapper |
|
- | |||||
| 2 | 5314949603 | Seal Chassis Btm |
|
- | |||||
| 3 | 5303001844 | Clip |
|
- | |||||
| 4 | 5303002458 | Louver W/ Link |
|
- | |||||
| 5 | 5303002164 | Link Rh |
|
- | |||||
| 6 | 5303002165 | Link-lh |
|
- | |||||
| 8 | 5303282680 | Front Complete |
|
- | |||||
| 9 | 5303282682 | Insert-mullion |
|
- | |||||
| 10 | 5308014101 | Seal-mullion |
|
- | |||||
| 11 | 5308017249 | Filter |
|
- | |||||
| 12 | 5303282681 | Panel |
|
- | |||||
| 13 | 08017126 | Name Plate |
|
- | |||||
| 14 | 5308016199 | Door |
|
- | |||||
| 16 | 5308010914 | Clip-front To Base |
|
- | |||||
| 17 | 5303271902 | Plug Btn |
|
- | |||||
| 19 | 5303271479 | Knob-slide |
|
- | |||||
| 20 | 5308017294 | Track (2) |
|
- | |||||
| 21 | 5303282683 | Dial Plate |
|
- | |||||
| 23 | 5303001984 | Seal |
|
- | |||||
| 24 | 5308008175 | Screw-front Mtg. |
|
- | |||||
| 1A | 5303210207 | Grille Rear (non-illustrated) |
|
- | |||||
| 1B | 5303271903 | Nameplate-grille (non-illustrated) |
|
- |
