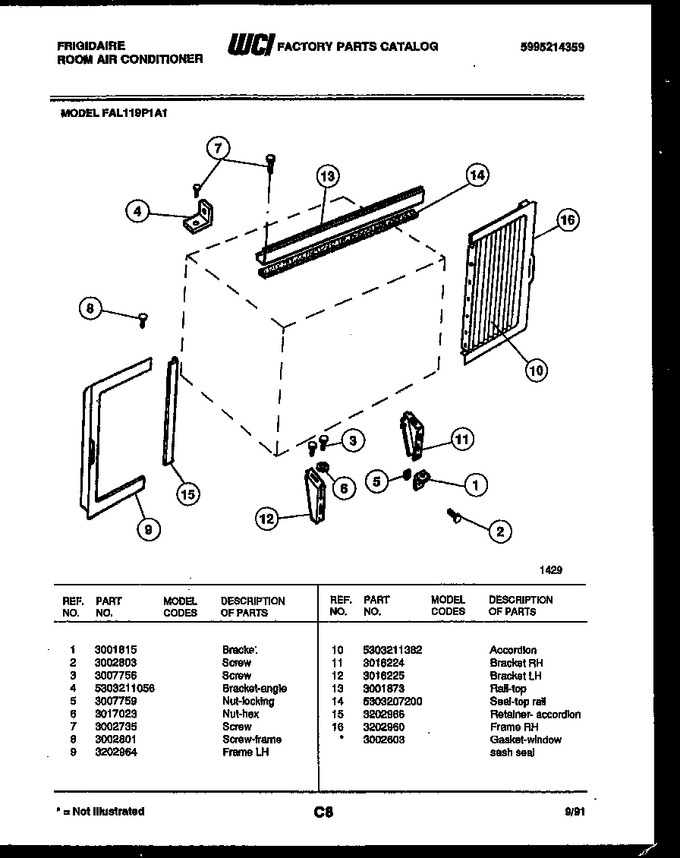

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3001815 | Bracket |
|
- | |||||
| 2 | 3002803 | Screw |
|
- | |||||
| 3 | 3007756 | Screw |
|
- | |||||
| 4 | 5303211056 | Bracket-angle |
|
- | |||||
| 5 | 3007759 | Nut Locking |
|
- | |||||
| 6 | 3017023 | Nut, Hex |
|
- | |||||
| 7 | 3002735 | Screw |
|
- | |||||
| 8 | 3002801 | Screw-frame |
|
- | |||||
| 9 | 3202964 | Frame-lh |
|
- | |||||
| 10 | 5303211382 | Accordion |
|
- | |||||
| 11 | 3016224 | Bracket Rh |
|
- | |||||
| 12 | 3016225 | Bracket Lh |
|
- | |||||
| 13 | 3001873 | Rail, Top |
|
- | |||||
| 14 | 5303207200 | Seal-top Rail |
|
- | |||||
| 15 | 3202966 | Retainer, Accordion |
|
- | |||||
| 16 | 3202960 | Frame Rh |
|
- | |||||
| *54848 | 3002603 | Gasket-window Sash Seal |
|
- |
