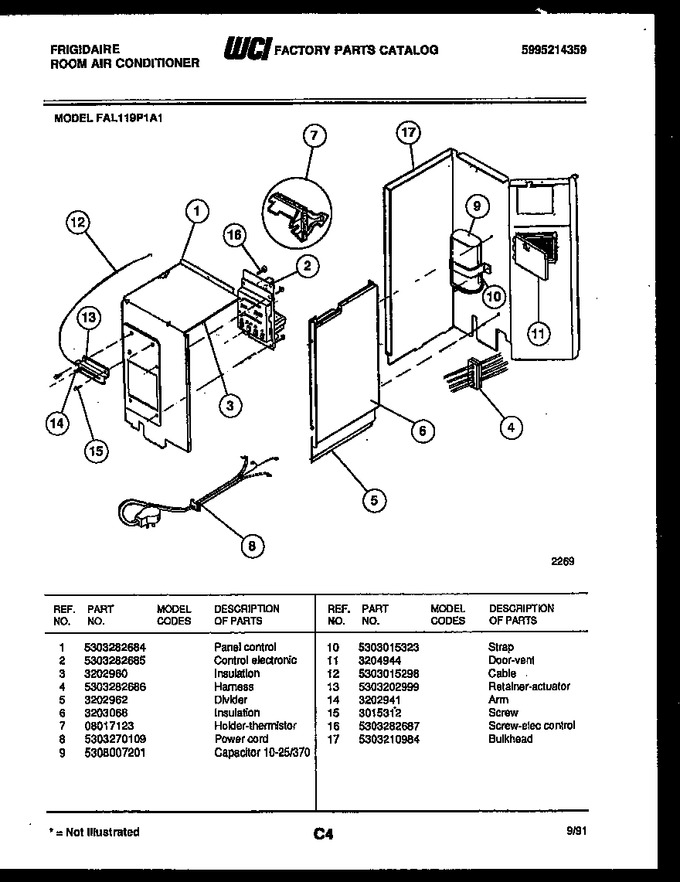

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303282684 | Panel Control |
|
- | |||||
| 2 | 5303282685 | Control, Electronic |
|
- | |||||
| 3 | 3202960 | Insulation |
|
- | |||||
| 4 | 5303282686 | Harness |
|
- | |||||
| 5 | 3202962 | Divider |
|
- | |||||
| 6 | 3203068 | Insulation |
|
- | |||||
| 7 | 08017123 | Holder - Thermistor |
|
- | |||||
| 8 | 5303270109 | Power Cord |
|
- | |||||
| 9 | 5308007201 | Capacitor 10-25/370 |
|
- | |||||
| 10 | 5303015323 | Strap |
|
- | |||||
| 11 | 3204944 | Door-vent |
|
- | |||||
| 12 | 5303015298 | Cable |
|
- | |||||
| 13 | 5303202999 | Retainer - Actuator |
|
- | |||||
| 14 | 3202941 | Arm |
|
- | |||||
| 15 | 3015312 | Screw |
|
- | |||||
| 16 | 5303282687 | Screw-elec Control |
|
- | |||||
| 17 | 5303210984 | Bulkhead |
|
- |
