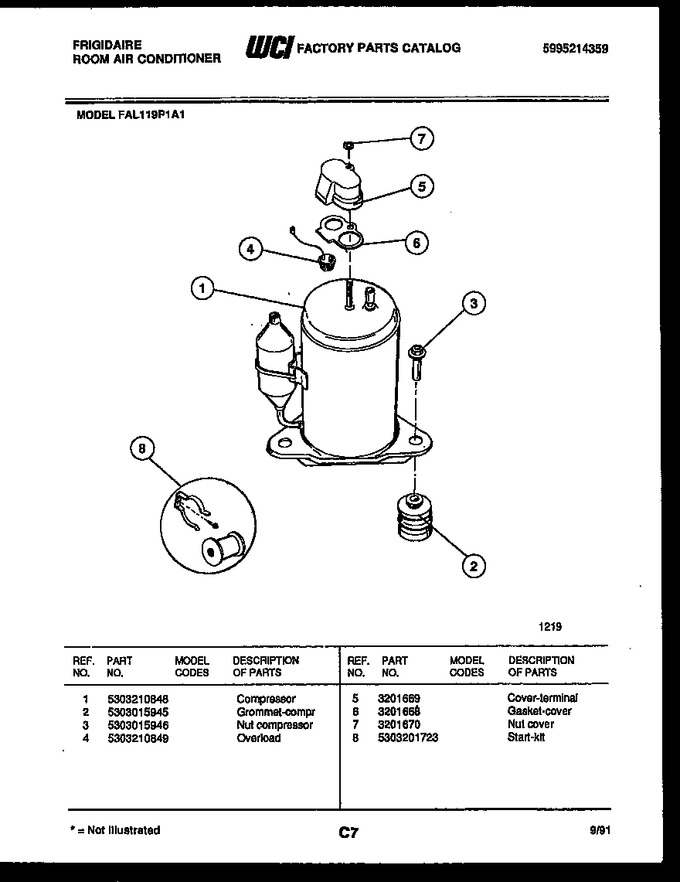

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210848 | Compressor |
|
- | |||||
| 2 | 5303015945 | Grommet-compr. |
|
- | |||||
| 3 | 5303015946 | Nut-compressor |
|
- | |||||
| 4 | 5303210849 | Overload |
|
- | |||||
| 5 | 3201669 | Cover-terminal |
|
- | |||||
| 6 | 3201668 | Gasket-cover |
|
- | |||||
| 7 | 3201670 | Nut-cover |
|
- | |||||
| 8 | 5303201723 | Start Kit |
|
- |
