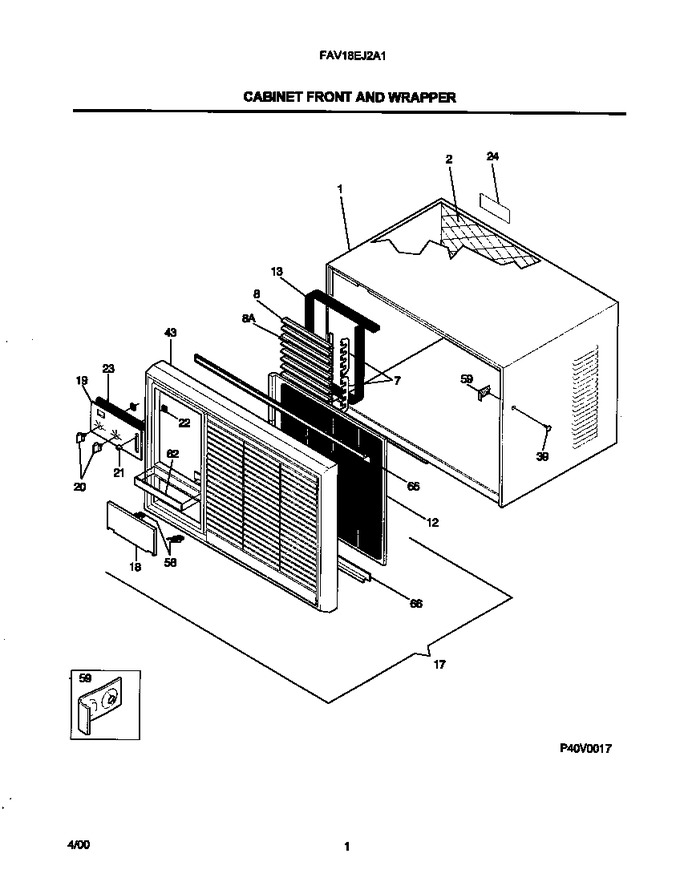

02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 309632706 | Slv-assy Compl W/hls Domes Nc |
|
- | |||||
| 2 | 309632804 | Grill&rr Rail Asm-hdtc |
|
- | |||||
| 7 | 309634801 | Link-louver Hdsa 9500 |
|
- | |||||
| 8 | 309635003 | Louver-horiz W/hndl 1403 |
|
- | |||||
| 8 | 309634903 | Lver-horiz W/o Hndl 1403 |
|
- | |||||
| 12 | 309635203 | Filter-smooth Hdsa |
|
- | |||||
| 13 | 5304411217 | Seal-disch-area Hdsa |
|
- | |||||
| 17 | 309637005 | +frt Assy Compl-fac Sa |
|
- | |||||
| 19 | 309636814 | Dial Plate |
|
- | |||||
| 20 | 309307011 | Knob-control(1403;w/6502) |
|
- | |||||
| 21 | 5304414414 | Knob-slide |
|
- | |||||
| 22 | 5303001775 | Spacer, Plate |
|
- | |||||
| 23 | 3201953 | Seal,plate |
|
- | |||||
| 43 | 309635103 | Frame- Hdsa |
|
- | |||||
| 66 | 309636601 | Filter Track-hdsa Natural |
|
- | |||||
| *04120 | 5304411215 | Seal-disch-area Hdsa |
|
- | |||||
| *04121 | 5304411216 | Seal-disch-area Hdsa |
|
- |
