01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:

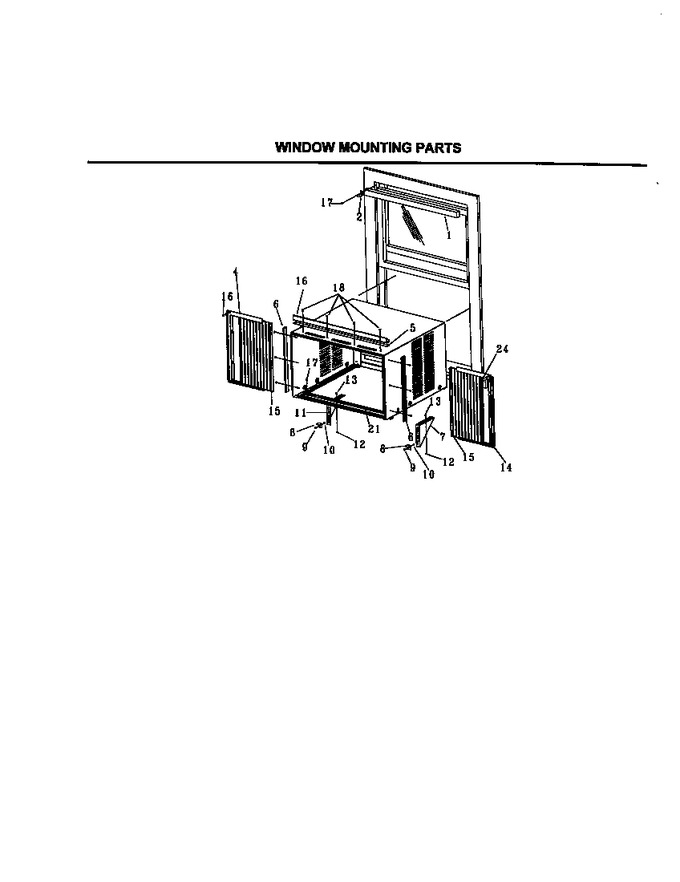

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304407729 | Seal-window Frame,top |
|
- | |||||
| 2 | 5303211056 | Bracket |
|
- | |||||
| 4 | 5304414928 | Frame,lh |
|
- | |||||
| 5 | 5304409250 | Seal-top Rail |
|
- | |||||
| 6 | 5304414933 | Retainer-hdso A-kit (ncs1403) |
|
- | |||||
| 7 | 5304414931 | Support-rh |
|
- | |||||
| 8 | 3001815 | Bracket - Support |
|
- | |||||
| 9 | 3007756 | Screw |
|
- | |||||
| 10 | 3007759 | Nut - Bracket |
|
- | |||||
| 11 | 5304414932 | Support-lh |
|
- | |||||
| 12 | 3017023 | Nut,hex ,10-32 ,2 |
|
- | |||||
| 13 | 5303281649 | Screw,support |
|
- | |||||
| 14 | 5304414929 | Frame,rh |
|
- | |||||
| 15 | 5304414930 | Accordian |
|
- | |||||
| 16 | 5304414116 | Top Rail-hd (ncs1403-g96y) |
|
- | |||||
| 17 | 3002803 | Screw,wood, Type 17 ,10-12 X 0.750 |
|
- | |||||
| 18 | 8012680 | Screw,rail Top |
|
- | |||||
| 21 | 5303212504 | Seal-bottom |
|
- | |||||
| 24 | 3002801 | Screw,8-18b X 0.500 |
|
- | |||||
| *04122 | 309313303 | Kit-wing/retainer Support |
|
- | |||||
| *04123 | 5304409248 | Hardware-mounting |
|
- | |||||
| *04124 | 5304409249 | Seal-hole,shipping Screws |
|
- |
