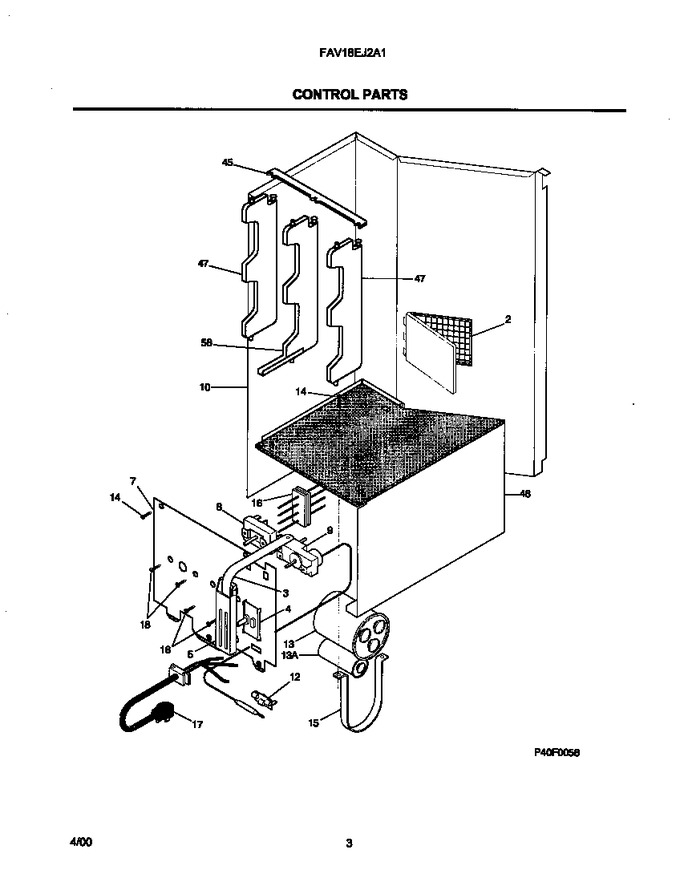

03 - Control Parts


04 - Air Handling Parts


05 - Compressor Parts


06 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303295752		Door-ventilator		Appelez-nous	-
3	5303201820		Strap,vent Door		Appelez-nous	-
4	5303201821		Actuator Arm-vent Control		Appelez-nous	-
5	5303209200		Retainer		Appelez-nous	-
8	5308017262		Switch-selector		Appelez-nous	-
9	5303201970		Control-temperature		Appelez-nous	-
10	5303296868		Bulkhead		Appelez-nous	-
12	5303211009		Clip-control Bulb		Appelez-nous	-
13	5303012032		Capacitor, 370 V, 6 Mfd		Appelez-nous	-
13	5303316906		Capacitor		Appelez-nous	-
14	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
15	3201973		Strap-capacitor		Appelez-nous	-
16	5303201971		Wiring Harness		Appelez-nous	-
17	309343119		Cord-srv 230v/30a/12ga Grey		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
38	5308009156		Screw,10-16ab X 0.500 , Motor Drive		Appelez-nous	-
40	3202810		Spacer-louvers, (5)		Appelez-nous	-
41	5300517130		Link-louvers Vertical		Appelez-nous	-
44	5303201843		Retainer-louver-bottom		Appelez-nous	-
45	5303201847		Retainer-louver Top.		Appelez-nous	-
46	5303300232		Cover		Appelez-nous	-
47	5303299318		Louver-vertical (2)		Appelez-nous	-
58	5303300230		Louver,vertical ,w/handle		Appelez-nous	-
