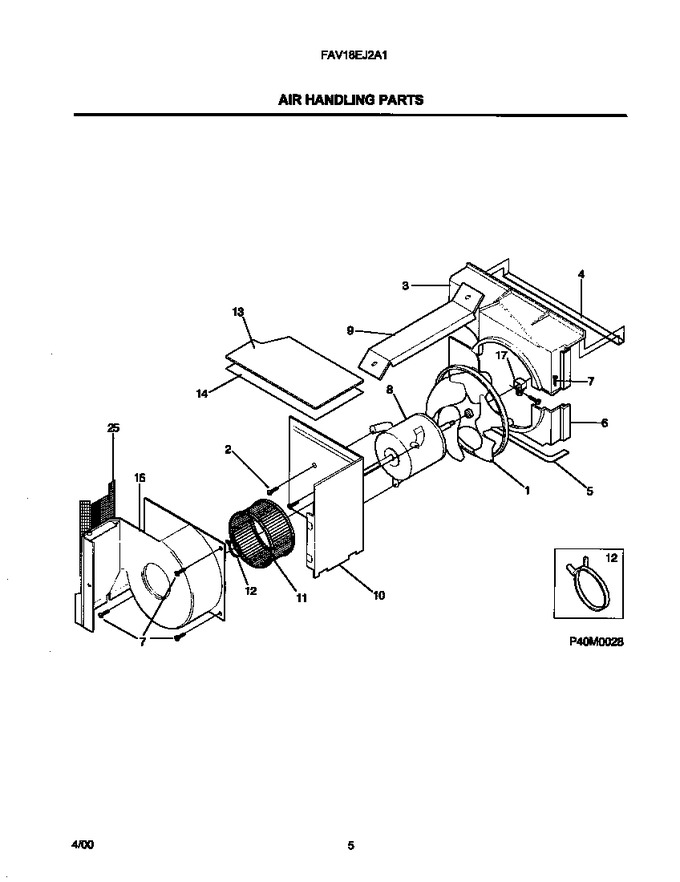

01 - Cover
02 - Cabinet Front And Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303311048 | Fan Blade,with Clamp |
|
- | |||||
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309623201 | Condenser Shroud-one Pc. |
|
$ 99.33 | |||||
| 5 | 5303015311 | Seal,fan Housing ,lower |
|
- | |||||
| 8 | 5304408296 | Motor-fan,3 Speed ,60 Hz ,230 V |
|
- | |||||
| 10 | 309623402 | Bulkhead-air Side Hd S/a |
|
- | |||||
| 11 | 5304404774 | Blower Wheel,with Clamp |
|
$ 130.94 | |||||
| 12 | 5304411225 | Insulation-blkhd/air Side Sa |
|
- | |||||
| 13 | 5303015313 | Cover - Top |
|
- | |||||
| 14 | 5304411222 | Insul-top Covr Med Side Dschg |
|
- | |||||
| 14 | 5303015427 | Screw,truss Head ,8-18ab X 0.47 |
|
- | |||||
| 15 | 5304411224 | Scroll-evap Side Disch |
|
- | |||||
| 25 | 5303302933 | Screen |
|
- |
