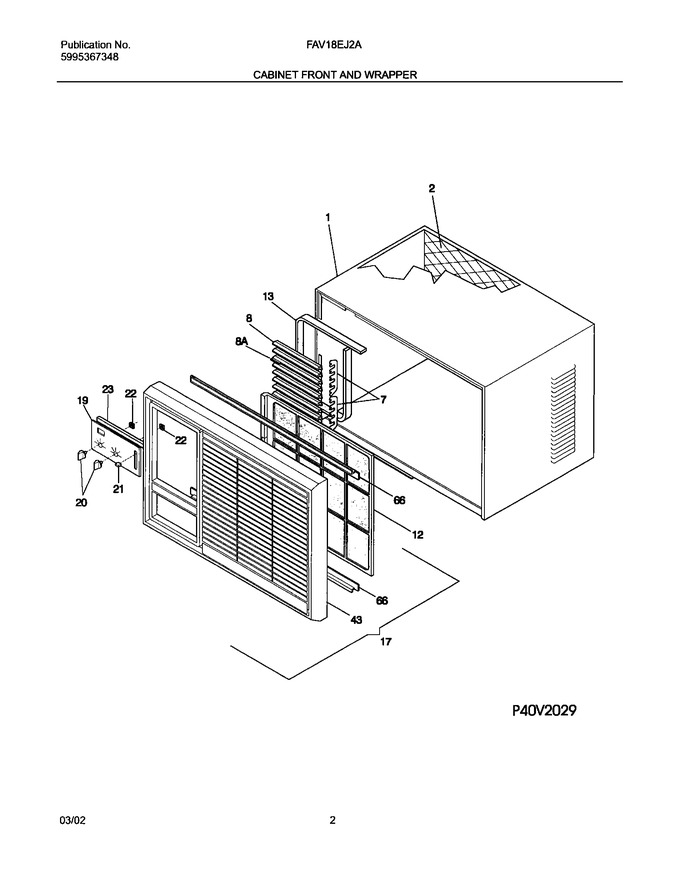

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309632706		Cabinet,sleeve		Appelez-nous	-
2	309632804		Grille,rear ,with Rail		Appelez-nous	-
7	309634801		Link,louver ,(2)		Appelez-nous	-
8	309634903		Louver,horizontal		Appelez-nous	-
12	309635203		Filter		Appelez-nous	-
13	5304411216		Seal,6.5`` ,discharge Area		Appelez-nous	-
13	5304411215		Seal,19.5`` ,discharge Area		Appelez-nous	-
13	5304411217		Seal,11`` ,discharge Area		Appelez-nous	-
17	309637005		Front-cabinet,complete Assy ,less Dial Assy		Appelez-nous	-
19	309636814		Dial Plate		Appelez-nous	-
20	309307013		Knob-control		Appelez-nous	-
21	5304414414		Knob,sliding		Appelez-nous	-
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
23	3201953		Seal-dial Plate		Appelez-nous	-
43	309635103		Frame,cabinet Front		Appelez-nous	-
66	309636601		Track,filter		Appelez-nous	-
8A	309635003		Louver,horizontal ,with Handle		Appelez-nous	-
NI	5304411207		Screw-front		Appelez-nous	-
NI	309367462		Energy Guide,fav18ej2a3		Appelez-nous	-
