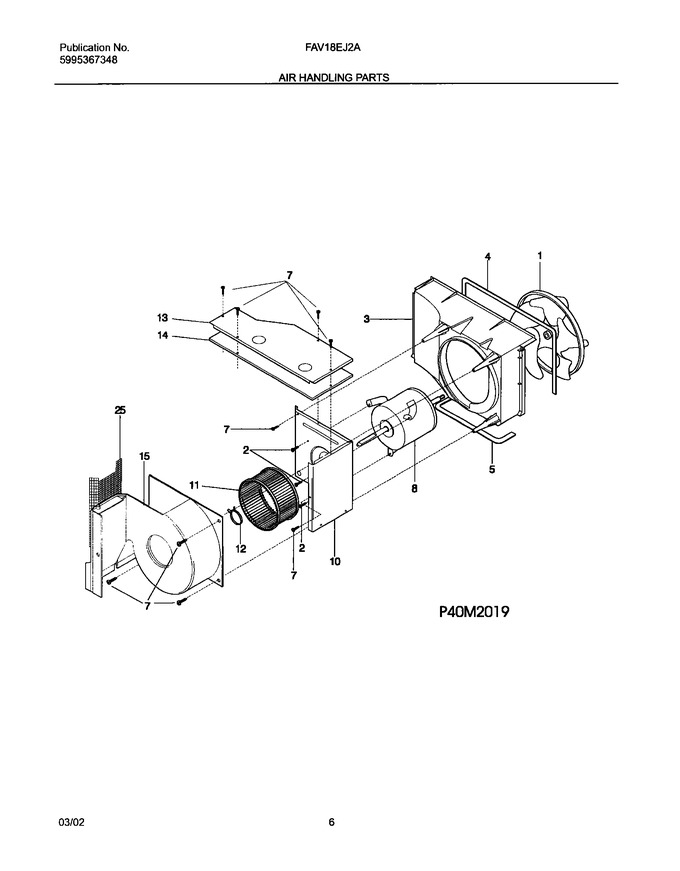

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3202975		Screw,10-16ab X 0.72 ,square Drive		Appelez-nous	-
3	309623201		Shroud,cond Fan Motor				$ 99.33
4	5303212504		Seal,sleeve/shroud ,23.72`` X 1.25`` ,bottom		Appelez-nous	-
5	5303015311		Seal,fan Housing ,19.56`` X 0.50`` ,lower		Appelez-nous	-
7	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
10	309623402		Bulkhead,air System		Appelez-nous	-
12	5304411225		Insulation,bulkhead ,air Side		Appelez-nous	-
13	5303015313		Cover - Top		Appelez-nous	-
14	5304411222		Insulation,cover		Appelez-nous	-
15	5304411224		Housing,blower Scroll ,side Discharge		Appelez-nous	-
25	5303302933		Screen,air Handling ,wire		Appelez-nous	-
F1	5303311048		Fan Blade,with Clamp		Appelez-nous	-
F11	5304404774		Blower Wheel,with Clamp				$ 130.94
F8	309630603		Motor,3 Speed Fan ,60 Hz ,230 V		Appelez-nous	-
