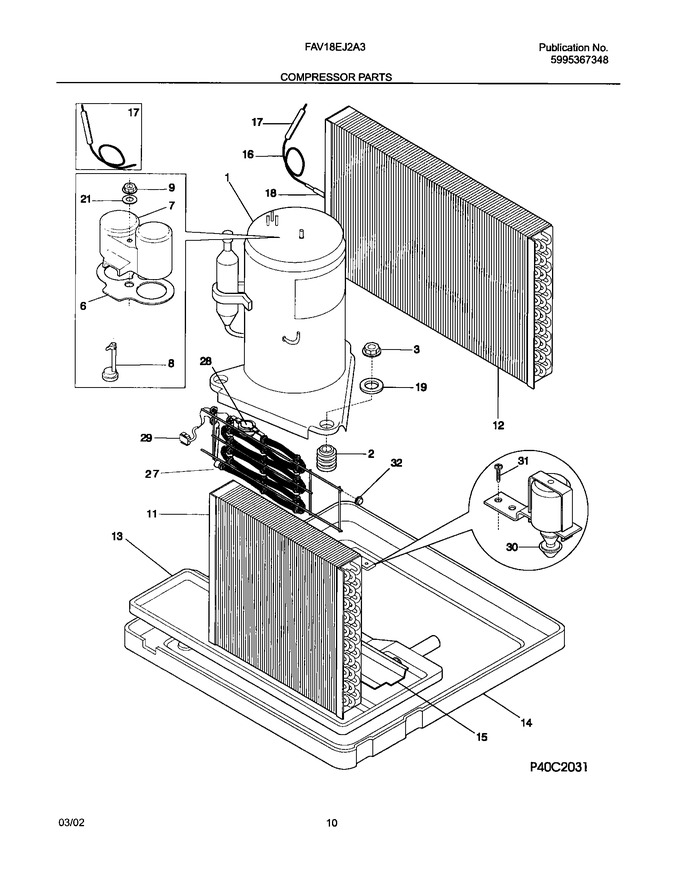

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303283877		Grommet,compressor Mtg ,(3)		Appelez-nous	-
3	5308006948		Nut,compressor Mtg ,(3)		Appelez-nous	-
6	5303291330		Gasket,terminal Cover		Appelez-nous	-
7	5304416126		Cover,elec Terminal ,compressor		Appelez-nous	-
8	5304414111		Overload Protector,mra 12044-386		Appelez-nous	-
9	5303294292		Nut-terminal Cover		Appelez-nous	-
13	5303208221		Tray,evaporator Drip		Appelez-nous	-
14	309632913		Base,compressor Mtg. ,with Studs		Appelez-nous	-
15	3201969		Shield,heater Baffle		Appelez-nous	-
19	5303002664		Washer,compressor Mtg		Appelez-nous	-
21	5303293809		Washer,terminal Cover		Appelez-nous	-
30	309363601		Valve-water,drain		Appelez-nous	-
31	5303209503		Screw,valve Mtg.		Appelez-nous	-
32	3018695		Nut,heater Assy ,self-threading		Appelez-nous	-
F1	309603113		Compressor		Appelez-nous	-
F11	5303317606		Evaporator		Appelez-nous	-
F12	5303306719		Condenser				$ 574.61
F16	5304427225		Capillary Tube,70 Inch Long ,cut-to-length		Appelez-nous	-
F17	5300265301		Drier-filter,service Kit				$ 284.30
F18	5303290357		Strainer		Appelez-nous	-
F27	5303201967		Heater Assy,with Thermostat		Appelez-nous	-
F28	5303016865		Thermostat-heater		Appelez-nous	-
F29	3201968		Wiring Harness		Appelez-nous	-
NI	309112501		Washer,metallic		Appelez-nous	-
