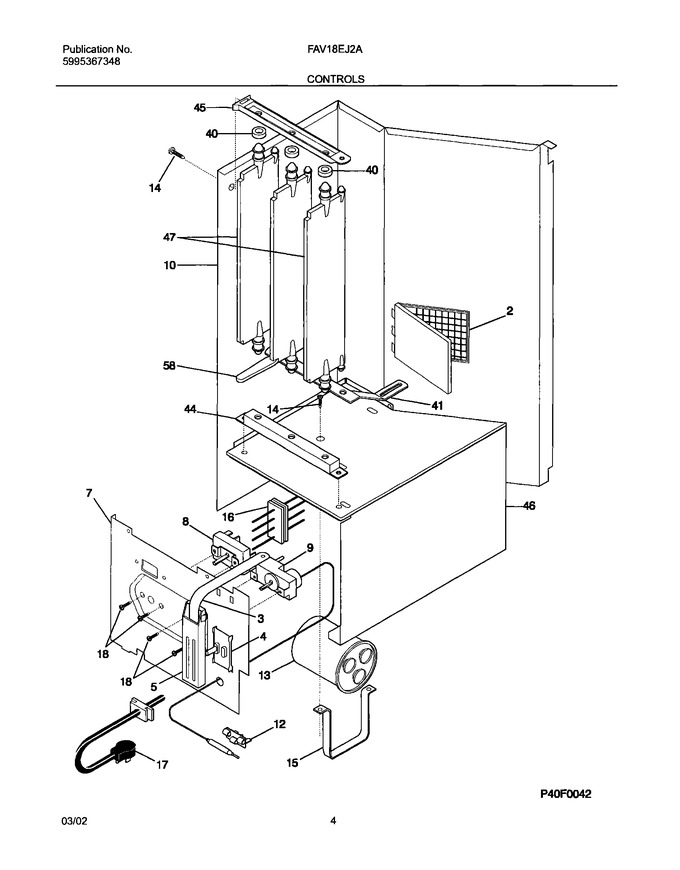

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303295752		Door-ventilator		Appelez-nous	-
3	5303201820		Strap,vent Door		Appelez-nous	-
4	5303201821		Actuator-vent Door		Appelez-nous	-
5	5303209200		Retainer,actuator Arm		Appelez-nous	-
9	5304411209		Control-temperature		Appelez-nous	-
10	5303296868		Bulkhead		Appelez-nous	-
12	5303211009		Clip,spacer ,temp Sensor		Appelez-nous	-
14	5303015427		Screw,truss Head ,8-18ab X 0.47		Appelez-nous	-
15	3202396		Strap,capacitor Mtg		Appelez-nous	-
17	309343119		Cord-electric Power,12 Awg ,30 Amp ,230 V		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
40	3202810		Spacer-louver (5)		Appelez-nous	-
41	5300517130		Link-louvers Vertical		Appelez-nous	-
44	5303201843		Retainer-louver-bottom		Appelez-nous	-
45	5303201847		Retainer-louver Top.		Appelez-nous	-
46	5303300232		Cover,control Compt		Appelez-nous	-
47	5303299318		Louver-vertical (2)		Appelez-nous	-
58	5303300230		Louver,vertical ,w/handle		Appelez-nous	-
F13	5303202395		Capacitor,370 V ,6+25 Mfd		Appelez-nous	-
F16	5304427235		Wiring Harness		Appelez-nous	-
F8	309329302		Switch		Appelez-nous	-
NI	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,ground		Appelez-nous	-
NI	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
