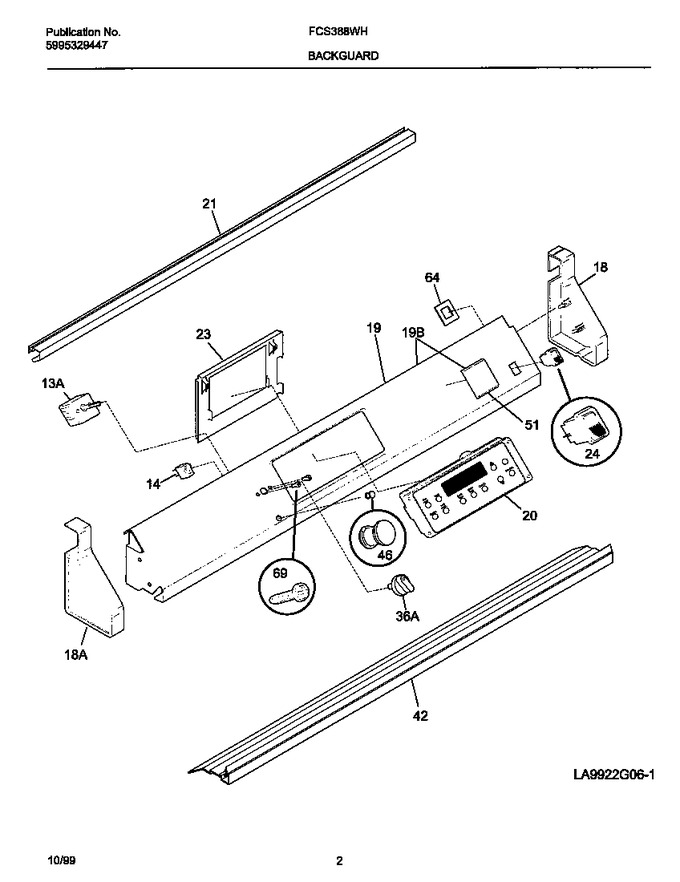

02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 13 | 5304508926 | Switch-warmer, Infinite, Drawer/zone (Replaces: 316095500) |
|
Immediately | $ 84.18 | ||||
| 14 | 5303051533 | Light-lamp/indicator |
|
$ 53.81 | |||||
| 18 | 5303300161 | End Cap, Black, Lh |
|
- | |||||
| 18 | 5303300160 | End Cap, Black, Rh |
|
- | |||||
| 19 | 318005543 | Panel-control |
|
- | |||||
| 20 | 318012903 | Clock/timer,electronic |
|
- | |||||
| 21 | 318027803 | Trim Backguard,top |
|
- | |||||
| 23 | 318015020 | Bracket-clock Mtg |
|
- | |||||
| 24 | 5304527841 | Switch-rocker, Oven Light, Black (Replaces: 316005602) |
|
Immediately | $ 11.38 | ||||
| 36 | 318017600 | Knob-warmer |
|
$ 30.14 | |||||
| 42 | 318106927 | Trim,backguard ,black ,bottom |
|
$ 188.06 | |||||
| 46 | 5308006417 | Lens-light/lamp, Indicator, Red, (2) |
|
$ 19.06 | |||||
| 51 | 316082300 | Nameplate, Black |
|
- | |||||
| 64 | 318112200 | Mtg Rocker Switch |
|
- | |||||
| 69 | 5303288565 | Screw, Switch Mtg., 8-32 X 3/16 (Replaces: 5303323134) |
|
$ 3.12 |
