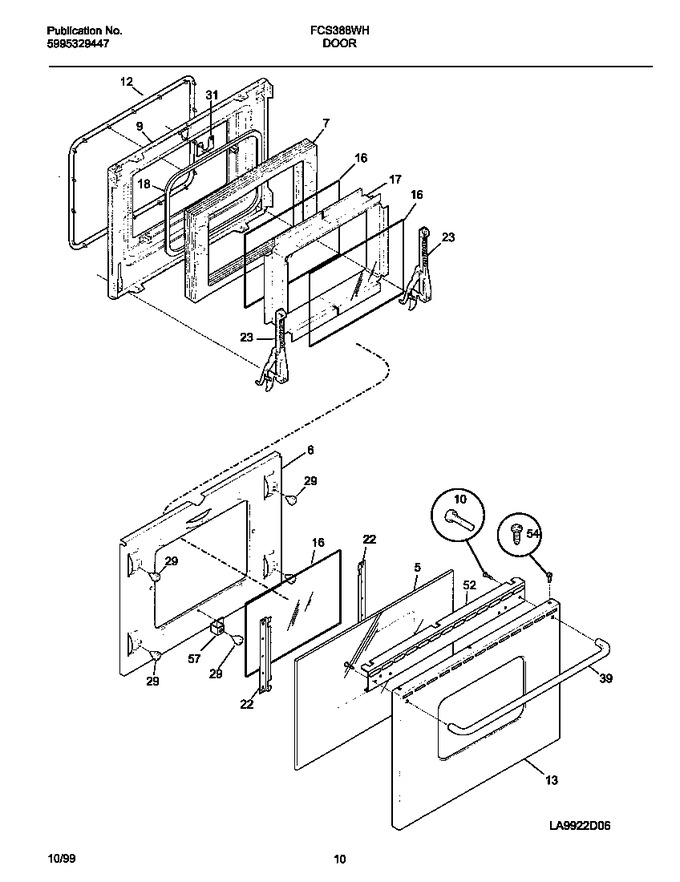

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318041104		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318056802		Shield-insulation		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048802		Liner-oven Door		Appelez-nous	-
10	240442708		Screw,handle Mtg ,10-32 X 1.125   (Replaces: 5304400794)				$ 8.34
12	318053103		Seal-oven Door			Immediately	$ 150.03
13	318009220		Panel-oven Door,stainless ,outer		Appelez-nous	-
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310828		Hinge-oven Door, (2)		Appelez-nous	-
29	5303310535		Bumper Base		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	316079500		Handle-door/drawer, Stainless				$ 289.70
52	318123401		Shield-oven Door,stainless ,top		Appelez-nous	-
54	5303300265		Screw, 8-18 X 1/2				$ 15.17
57	318172902		Support Glass				$ 1.47
