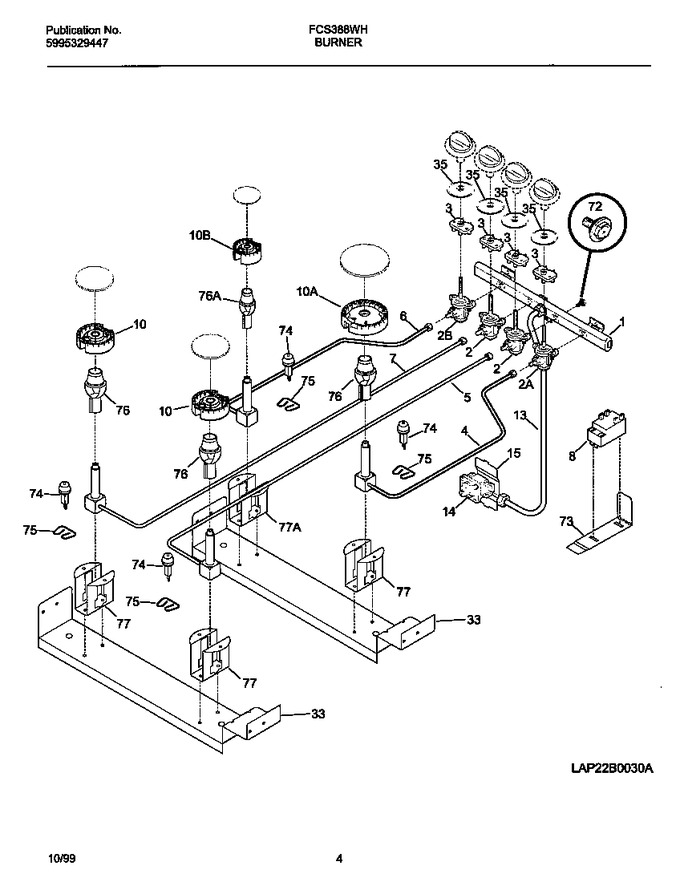

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177301		Manifold Pipe		Appelez-nous	-
2	318087040		Valve-top Burner				$ 284.34
2	318087001		Valve-top Burner				$ 204.59
2	5303935042		Valve-top Burner, 2-position, (3)				$ 175.25
3	316032002		Switch-ignitor, (4)				$ 63.46
4	318167703		Tube,burner ,rf				$ 204.70
5	318167700		Tube,burner ,lf				$ 210.05
6	318167702		Tube,burner ,rr				$ 213.83
7	318167701		Tube,burner ,lr				$ 233.00
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	318148001		Burner-top Mid,9100btu ,lf & Lr				$ 112.88
10	318148000		Burner-top Small,5000btu ,rr				$ 252.58
10	318148002		Burner-top,large ,13000 Btu ,large Rf				$ 144.64
13	318054503		Connector, Manifold Tube		Appelez-nous	-
14	318122700		Regulator,pressure				$ 139.63
15	318122900		Bracket		Appelez-nous	-
33	318171500		Bracket		Appelez-nous	-
35	318146300		Bushing		Appelez-nous	-
72	5303323141		Screw Valve <1/4-20x 5/16		Appelez-nous	-
73	318080100		Plate		Appelez-nous	-
74	318148700		Ignitor Gourmet Assy				$ 62.19
75	318148800		Clip,electrode				$ 68.57
76	318167801		Mid & Large Mixing Tube,mid & Large				$ 98.60
76	318167800		Small Mixing Tube,small Rr & Lr				$ 78.33
77	318112010		Bracket-burner Mtg,mid & Large		Appelez-nous	-
77	318112000		Bracket-burner Mtg				$ 51.14
223	318038400		Cover-tube		Appelez-nous	-
*75680	318127407		Lp Kit		Appelez-nous	-
*75681	08002868		Screw 10 X 24 X 1/2				$ 14.18

    View Diagram in Separate Window       Print Part List
