SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

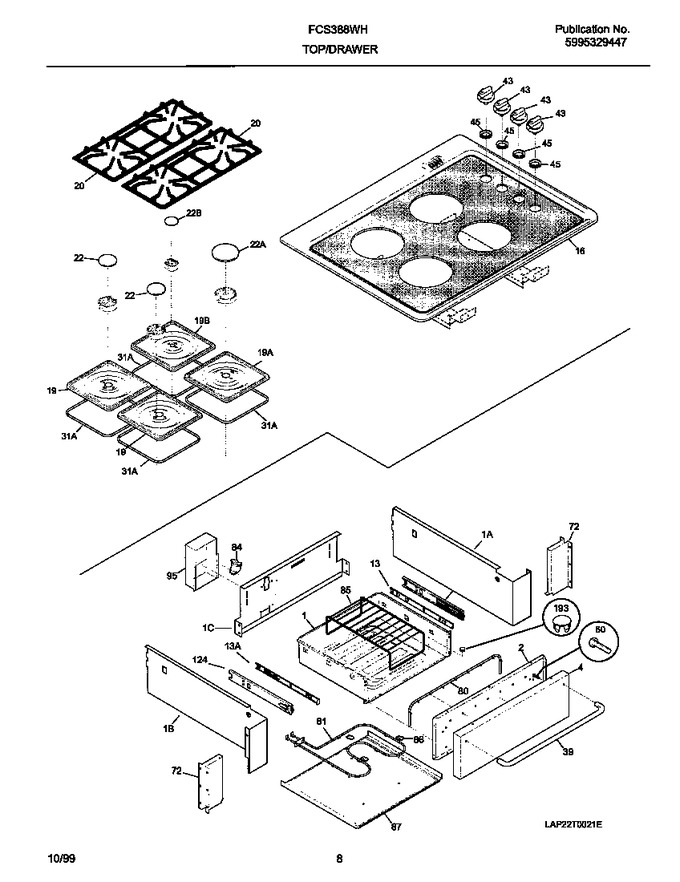

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318142500		Drawer,warmer		Appelez-nous	-
1	318143330		Deflector-warmer Side,side,lh		Appelez-nous	-
1	318143331		Deflector-warmer Right,side,rh		Appelez-nous	-
1	318143203		Deflector-warmer,rear		Appelez-nous	-
2	318108017		Liner,drawer		Appelez-nous	-
4	318107900		Panel-drawer, Stainless		Appelez-nous	-
13	318259507		Glide-drawer, Inner, Lh   (Replaces: 316105601)			Immediately	$ 69.01
13	318259507		Glide-warmer,inner Rh   (Replaces: 316105602)			Immediately	$ 69.01
16	318079203		Main Top, Stainless		Appelez-nous	-
17	5304400195		Retainer Lenz		Appelez-nous	-
19	318168124		Burner Pan Large Black,large Rf				$ 140.67
19	318168104		Burner Pan Small Black,small Rr & Lr				$ 155.93
19	318168114		Burner Pan Medium Black,mid Lf & Cr				$ 151.68
20	318120402		Grate		Appelez-nous	-
22	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22	316213500		Cap-burner,black ,mid Lf &cr   (Replaces: 318076410)				$ 43.23
22	318076400		Cap-burner,black ,small Rr & Lr				$ 25.66
31	318053901		Gasket-pan   (Replaces: 318053900)				$ 33.60
39	316079500		Handle-door/drawer, Stainless				$ 289.70
43	318099110		Knob,top Valve ,black ,(4)				$ 104.42
45	318146200		Bushing		Appelez-nous	-
60	240442708		Screw,handle Mtg ,10-32 X 1.125   (Replaces: 5304400794)				$ 8.34
72	318113402		Bracket-slide,(2)		Appelez-nous	-
80	318054300		Gasket-air Duct Cvr		Appelez-nous	-
81	316093100		Element, Warmer Drawer		Appelez-nous	-
84	318005103		Thermostat,safety				$ 159.51
85	807328301		Rack, Warmer Drawer   (Replaces: 316093600)				$ 87.21
86	316095800		Clip,hold Down ,warmer Element				$ 9.93
87	318121503		Base-warmer		Appelez-nous	-
95	318143701		Cover-wire		Appelez-nous	-
124	316105501		Glide-warmer,outer/rh & Lh ,(2)   (Replaces: 316105500)				$ 90.72
193	5303325173		Cap-plug		Appelez-nous	-
219	318003400		Thermostat-safety				$ 237.43
*75685	5303323221		Washer,fiber		Appelez-nous	-
*75686	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*75687	08011955		Screw,10-24 X 3/8 ,square Drive			Immediately	$ 9.36
