| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

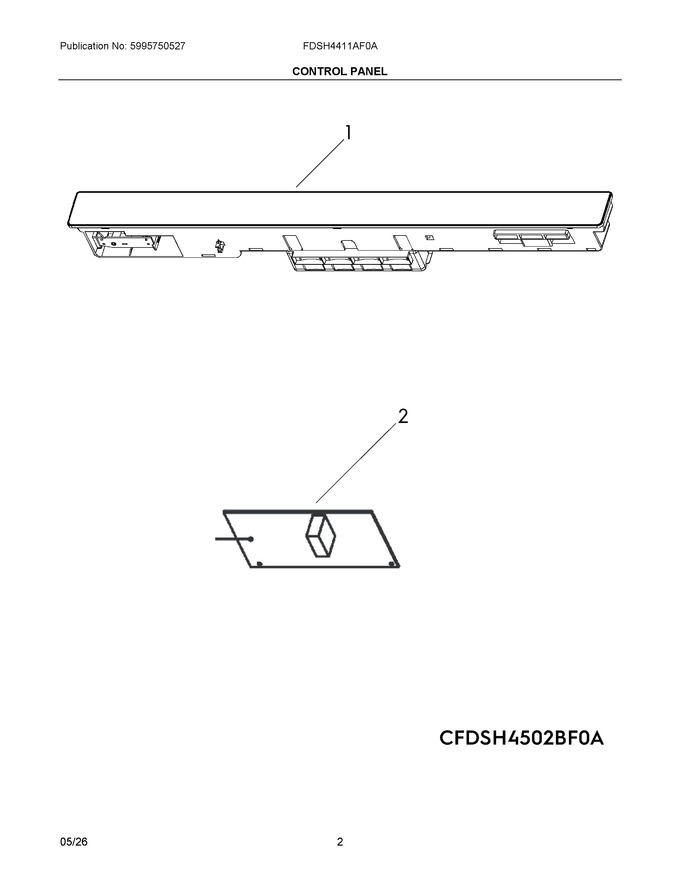

| 1 | 4056012695 | Control Panel, Assembly |
|
$ 170.80 | |||||
| 2 | 4056014477 | User Interface, Assembly |
|
Immediately | $ 114.74 | ||||
| NI | 4056014493 | Wiring Harness, Main |
|
$ 143.94 |
